R32 Capacity Range 45-54 Type ARXG45KHTB [3Phase]
Features
- Easy installation (compact and lightweight)
- Design that produces high static pressure
- Low noise mode
- Low ambient operation
Feature Icons
Capacity
12.1 kW
13.5 kW
Specifications
| Power Source | Phase | 3 phase 3N | |
|---|---|---|---|
| Voltage | 400 V | ||
| Frequency | 50 Hz | ||
| Capacity | Cooling | 12.1 (4.0 - 14.0) kW | |
| Heating | 13.5 (5.0 - 16.2) kW | ||
| Input Power | Cooling | 4.160 kW | |
| Heating | 3.610 kW | ||
| EER | Cooling | 2.91 W/W | |
| COP | Heating | 3.74 W/W | |
| Max. Operating Current | Cooling | 14.00 A | |
| Heating | 14.00 A | ||
| Moisture Removal | 1.50 l/h | ||
| Sound Pressure Level*2 | Indoor (Cooling) | High | 47 dB(A) |
| Middle | 43 dB(A) | ||
| Low | 40 dB(A) | ||
| Indoor (Heating) | High | 47 dB(A) | |
| Middle | 43 dB(A) | ||
| Low | 40 dB(A) | ||
| Sound Pressure Level*2 | Outdoor (Cooling) | High | 57 dB(A) |
| Outdoor (Heating) | High | 57 dB(A) | |
| Sound Power Level | Indoor (Cooling) | High | 75 dB(A) |
| Indoor (Heating) | High | 74 dB(A) | |
| Outdoor (Cooling) | High | 71 dB(A) | |
| Outdoor (Heating) | High | 71 dB(A) | |
| Airflow Rate | Indoor (Cooling) | High | 3350 m³/h |
| Outdoor (Cooling) | High | 4450 m³/h | |
| Static Pressure Range (standard) | 100 - 250 (100) Pa | ||
| Net Dimensions Indoor |
Height | 400 mm | |
| Width | 1050 mm | ||
| Depth | 500 mm | ||
| Net Dimensions Outdoor |
Height | 998 mm | |
| Width | 940 mm | ||
| Depth | 320 mm | ||
| Net Weight | Indoor | 46.0 kg | |
| Outdoor | 67.0 kg | ||
| Connection Pipe Diameter | Liquid | φ9.52 mm | |
| Gas | φ15.88 mm | ||
| Max. Pipe Length (Pre Charge) | 50.0 (30.0) m | ||
| Max. Height Difference | 30 m | ||
| Operation Range | Cooling | -15 to 46 °C DB | |
| Heating | -15 to 24 °C DB | ||
| Refrigerant | Type | R32 | |
| Global Warming Potential | 675 | ||
| Charge | 2700 g (1.823 CO2eq–T) | ||
Scroll

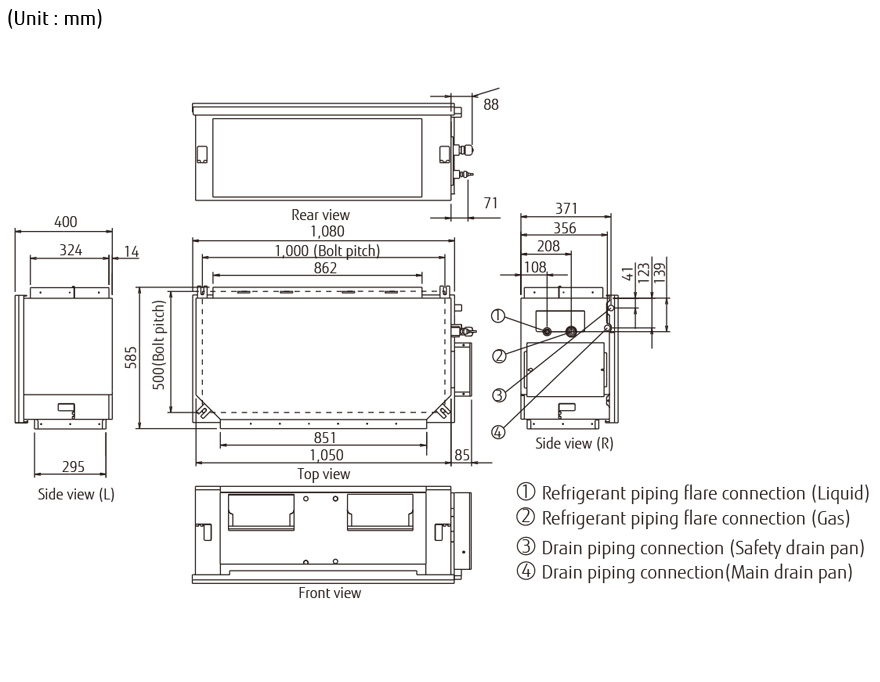

Dimensions
Indoor Unit : ARXG45KHTB
