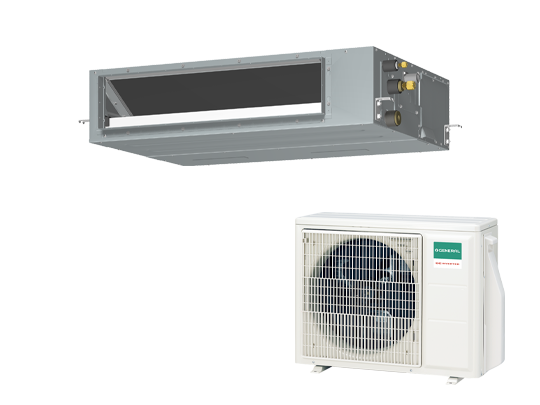

Medium Static Pressure Duct High-Efficiency & Comfort ARXH22KMTAP

Indoor Unit :
ARXH22KMTAP
Outdoor Unit :
AOHG22KBTB
Download :
Catalogues

Features

  • Slim & Compact design
  • High energy saving
  • Easy maintenance
  • Low ambient operation

Feature Icons

Low noise mode: Reduces the noise level of an outdoor unit. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Blue fin Drain pump as standard Automatic airflow adjustment: Automatically detects required airflow in each application case and adjusts the volume. External ON/OFF input Special Cooling: Special Cooling Fresh air intake: Fresh air can be taken in by a fan connected to an external control unit. Connectable fresh air duct: Outside air can be introduced by attaching a locally purchased duct to the fresh air knockout and an optional part.

Capacity

Cooling   6.0 kW
Heating   7.0 kW

Specifications

Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 6.0 (0.9 - 6.7) kW
Heating 7.0 (0.9 - 8.0) kW
Input Power Cooling 1.670 kW
Heating 1.840 kW
EER Cooling 3.60 W/W
COP Heating 3.80 W/W
Pdesign Cooling 6.0 kW
Heating (-10°C) 4.8 kW
SEER Cooling 6.50 W/W
SCOP Heating (Average) 4.20 W/W
Energy Efficiency Class Cooling A++
Heating (Average) A+
Max. Operating Current Cooling 12.60 A
Heating 12.60 A
Annual Energy Consumption Cooling 331 kWh/a
Heating 1598 kWh/a
Moisture Removal 1.50 l/h
Sound Pressure Level*2 Indoor (Cooling) High 32 dB(A)
Middle 28 dB(A)
Low 25 dB(A)
Quiet 24 dB(A)
Indoor (Heating) High 32 dB(A)
Middle 28 dB(A)
Low 25 dB(A)
Quiet 24 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 51 dB(A)
Outdoor (Heating) High 51 dB(A)
Sound Power Level Indoor (Cooling) High 58 dB(A)
Indoor (Heating) High 58 dB(A)
Outdoor (Cooling) High 63 dB(A)
Outdoor (Heating) High 63 dB(A)
Airflow Rate Indoor (Cooling) High 1150 m³/h
Outdoor (Cooling) High 2240 m³/h
Static Pressure Range (standard) 30 - 150 (40) Pa
Net Dimensions
Indoor		 Height 240 mm
Width 1000 mm
Depth 700 mm
Net Dimensions
Outdoor		 Height 632 mm
Width 799 mm
Depth 290 mm
Net Weight Indoor 31.0 kg
Outdoor 38.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ12.7 mm
Drain Hose Diameter φ25(I.D.), φ32(O.D.) mm
Max. Pipe Length (Pre Charge) 30.0 (20.0) m
Max. Height Difference 25 m
Operation Range Cooling -15 to 46 °C DB
Heating -15 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 1250 g (0.844 CO2eq–T)
Scroll

Dimensions

Indoor Unit : ARXH22KMTAP
