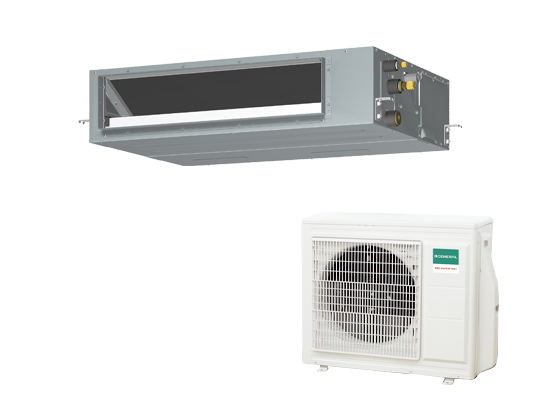

Medium Static Pressure Duct High-Efficiency & Comfort ARXH24KMTAP

Indoor Unit :
ARXH24KMTAP
Outdoor Unit :
AOHG24KBTB
Download :
Catalogues

Features

  • Slim & Compact design
  • High energy saving
  • Easy maintenance
  • Low ambient operation

Feature Icons

Low noise mode: Reduces the noise level of an outdoor unit. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Blue fin Drain pump as standard Automatic airflow adjustment: Automatically detects required airflow in each application case and adjusts the volume. External ON/OFF input Special Cooling: Special Cooling Fresh air intake: Fresh air can be taken in by a fan connected to an external control unit. Connectable fresh air duct: Outside air can be introduced by attaching a locally purchased duct to the fresh air knockout and an optional part.

Capacity

Cooling   6.8 kW
Heating   7.5 kW

Specifications

Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 6.8 (0.9 - 8.0) kW
Heating 7.5 (0.9 - 9.1) kW
Input Power Cooling 1.890 kW
Heating 1.870 kW
EER Cooling 3.60 W/W
COP Heating 4.01 W/W
Pdesign Cooling 6.8 kW
Heating (-10°C) 6.0 kW
SEER Cooling 6.40 W/W
SCOP Heating (Average) 4.20 W/W
Energy Efficiency Class Cooling A++
Heating (Average) A+
Max. Operating Current Cooling 13.60 A
Heating 13.60 A
Annual Energy Consumption Cooling 380 kWh/a
Heating 1999 kWh/a
Moisture Removal 2.20 l/h
Sound Pressure Level*2 Indoor (Cooling) High 34 dB(A)
Middle 30 dB(A)
Low 28 dB(A)
Quiet 26 dB(A)
Indoor (Heating) High 34 dB(A)
Middle 30 dB(A)
Low 28 dB(A)
Quiet 26 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 53 dB(A)
Outdoor (Heating) High 54 dB(A)
Sound Power Level Indoor (Cooling) High 60 dB(A)
Indoor (Heating) High 60 dB(A)
Outdoor (Cooling) High 65 dB(A)
Outdoor (Heating) High 66 dB(A)
Airflow Rate Indoor (Cooling) High 1230 m³/h
Outdoor (Cooling) High 2700 m³/h
Static Pressure Range (standard) 30 - 150 (50) Pa
Net Dimensions
Indoor		 Height 240 mm
Width 1000 mm
Depth 700 mm
Net Dimensions
Outdoor		 Height 716 mm
Width 820 mm
Depth 315 mm
Net Weight Indoor 31.0 kg
Outdoor 42.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ12.7 mm
Drain Hose Diameter φ25(I.D.), φ32(O.D.) mm
Max. Pipe Length (Pre Charge) 30.0 (20.0) m
Max. Height Difference 25 m
Operation Range Cooling -15 to 46 °C DB
Heating -15 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 1250 g (0.844 CO2eq–T)
Scroll

Dimensions

Indoor Unit : ARXH24KMTAP
