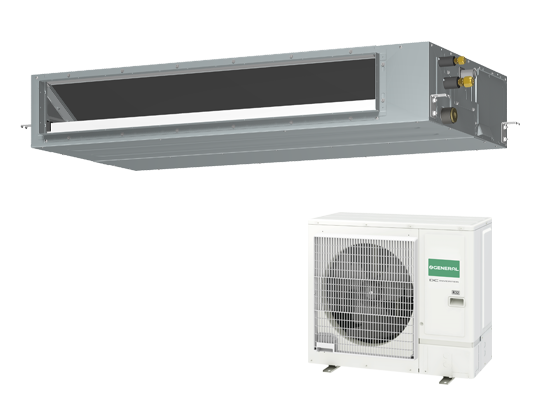

Medium Static Pressure Duct High-Efficiency & Comfort ARXH30KMTAP

Indoor Unit :
ARXH30KMTAP
Outdoor Unit :
AOHG30KBTB
Download :
Catalogues

Features

  • Slim & Compact design
  • High energy saving
  • Easy maintenance
  • Low ambient operation

Feature Icons

Low noise mode: Reduces the noise level of an outdoor unit. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Blue fin Drain pump as standard Automatic airflow adjustment: Automatically detects required airflow in each application case and adjusts the volume. External ON/OFF input Special Cooling: Special Cooling Fresh air intake: Fresh air can be taken in by a fan connected to an external control unit. Connectable fresh air duct: Outside air can be introduced by attaching a locally purchased duct to the fresh air knockout and an optional part.

Capacity

Cooling   8.5 kW
Heating   10.0 kW

Specifications

Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 8.5 (2.8 - 10.0) kW
Heating 10.0 (2.7 - 11.2) kW
Input Power Cooling 2.570 kW
Heating 2.500 kW
EER Cooling 3.31 W/W
COP Heating 4.00 W/W
Pdesign Cooling 8.5 kW
Heating (-10°C) 8.0 kW
SEER Cooling 6.23 W/W
SCOP Heating (Average) 4.00 W/W
Energy Efficiency Class Cooling A++
Heating (Average) A+
Max. Operating Current Cooling 22.60 A
Heating 22.60 A
Annual Energy Consumption Cooling 485 kWh/a
Heating 2795 kWh/a
Moisture Removal 1.80 l/h
Sound Pressure Level*2 Indoor (Cooling) High 38 dB(A)
Middle 34 dB(A)
Low 31 dB(A)
Quiet 28 dB(A)
Indoor (Heating) High 38 dB(A)
Middle 34 dB(A)
Low 31 dB(A)
Quiet 28 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 53 dB(A)
Outdoor (Heating) High 55 dB(A)
Sound Power Level Indoor (Cooling) High 64 dB(A)
Indoor (Heating) High 64 dB(A)
Outdoor (Cooling) High 68 dB(A)
Outdoor (Heating) High 69 dB(A)
Airflow Rate Indoor (Cooling) High 1950 m³/h
Outdoor (Cooling) High 3750 m³/h
Static Pressure Range (standard) 30 - 150 (50) Pa
Net Dimensions
Indoor		 Height 240 mm
Width 1400 mm
Depth 700 mm
Net Dimensions
Outdoor		 Height 788 mm
Width 940 mm
Depth 320 mm
Net Weight Indoor 42.0 kg
Outdoor 52.0 kg
Connection Pipe Diameter Liquid φ9.52 mm
Gas φ15.88 mm
Drain Hose Diameter φ25(I.D.), φ32(O.D.) mm
Max. Pipe Length (Pre Charge) 50.0 (30.0) m
Max. Height Difference 30 m
Operation Range Cooling -15 to 46 °C DB
Heating -15 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 1900 g (1.283 CO2eq–T)
Scroll

Dimensions

Indoor Unit : ARXH30KMTAP
