VRF Systems J-IV Series
Features
Common features
- Greater energy efficiency
- Energy-saving functions
- Better comfort
- Design flexibility
- High reliability
- Easy installation
- Easy service and maintenance
Series Features
- Efficiency in actual operation
- Long piping length
- Up to 14 units* can be connected
Outdoor unit lineup
| 230 V single phase | 400 V 3 phase | |
|---|---|---|
| 4 HP | AJH040LBLDH | AJH040LELDH |
| 5 HP | AJH045LBLDH | AJH045LELDH |
| 6 HP | AJH054LBLDH | AJH054LELDH |
Features
08:38

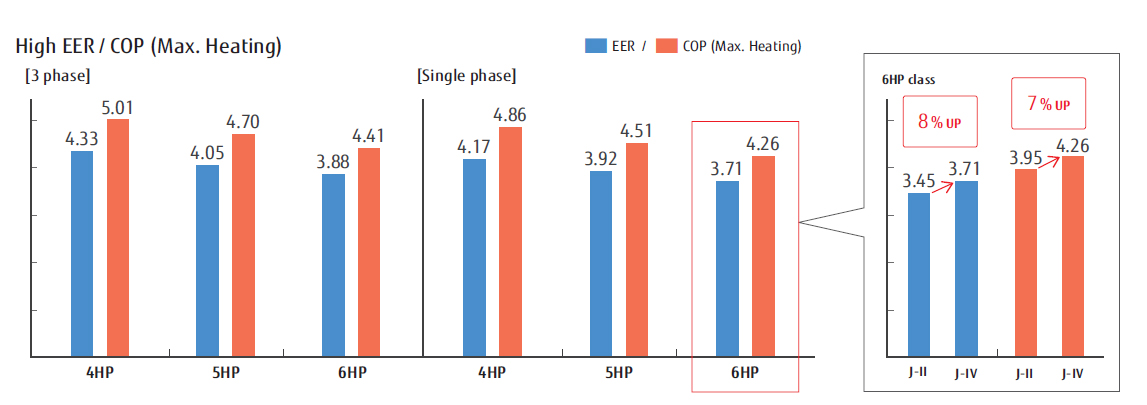

Efficiency in actual operation
Top class high COP (Max. Heating) is achieved for all models because of a large heat exchanger, highly efficient DC twin compressor.

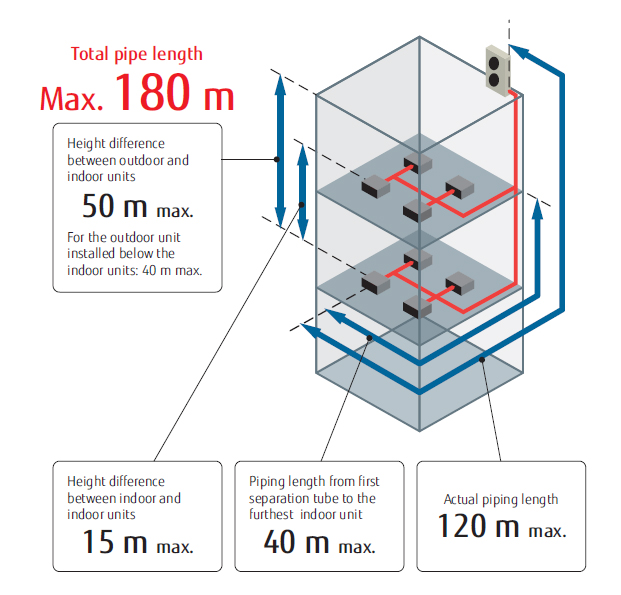

Long piping length
Our advanced refrigerant control technology allows us to achieve a total refrigerant piping length of 180 m. This opens up new possibilities in system design.

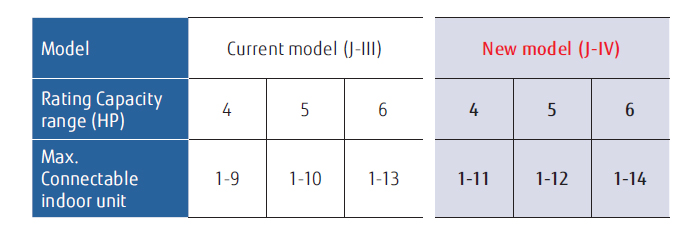

Up to 14 units* can be connected
Improvements in the design of the outdoor heat exchanger combined with our new 1.1kW indoor units mean that up to 14 indoor units can be connected.
- *
- 6 HP model
