Heat Pump for Small Capacity Type J-IV Series AJH045LBLDH

Outdoor unit

Outdoor Unit :
AJH045LBLDH
Download :
Catalogues

Features

  • Efficiency in actual operation
  • Long piping length
  • Up to 14 units* can be connected

Capacity

Cooling   14.0 kW
Heating   14.0 kW (Nominal) / 16.0 kW (Max.)


Specifications

Rated Capacity Range 5 HP
Max. Number of Connectable Indoor Units*1 1 - 12
Connectable Capacity of Indoor Units 7.0 - 21.0 kW
Scroll
Power Source Phase Single phase 1
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 14.0 kW
Nominal Heating 14.0 kW
Max. Heating 16.0 kW
Input Power Cooling 4.15 kW
Heating 3.60 kW
Nominal Heating 3.60 kW
Max. Heating 4.50 kW
EER Cooling 3.37 W/W
COP Nominal Heating 3.88 W/W
Max. Heating 3.55 W/W
Airflow Rate 6600 m³/h
Sound Pressure Level*2 Cooling 52 dB(A)
Heating 55 dB(A)
Sound Power Level Cooling 66 dB(A)
Heating 69 dB(A)
Max. External Static Pressure 30 Pa
Compressor Motor Output 3.75 kW
Heat Exchanger Fin Blue fin
Net Dimensions Height 1334 mm
Width 970 mm
Depth 370 mm
Net Weight 117 kg
Refrigerant Type R410A
Global Warming Potential 2088
Charge 5.3 kg (11.1 CO2eq–T)
Connection Pipe Diameter Liquid φ9.52 mm
Gas φ15.88 mm
Total Pipe Length 180 m
Max. Height Difference
(Outdoor Unit: Upper/Lower)
50 / 40 m
Operation Range Cooling -5 to 46 °CDB
Heating -20 to 21 °CDB
Scroll
Note:
Specifications are based on the following conditions.
Cooling:
Indoor temperature of 27°CDB / 19°CWB, and outdoor temperature of 35°CDB / 24°CWB.
Heating:
Indoor temperature of 20°CDB / (15°CWB), and outdoor temperature of 7°CDB / 6°CWB.
Pipe length:
7.5 m; Height difference between outdoor unit and indoor unit : 0 m. The protective function may work when using it outside the operation range.

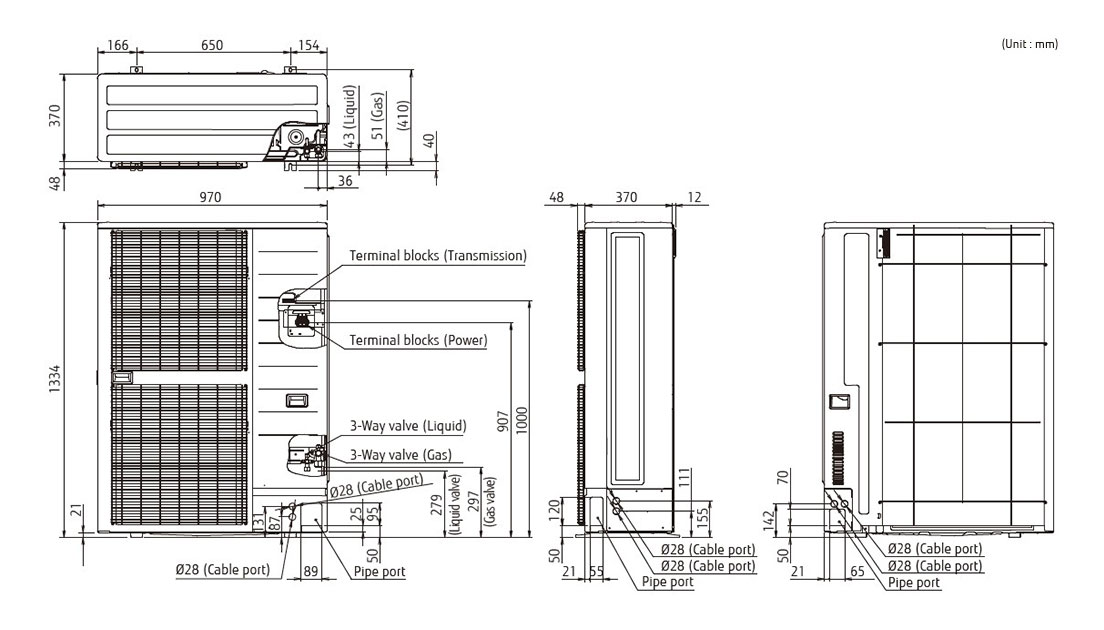

Dimensions

Outdoor Unit : AJH045LBLDH

Outdoor unit
