Wall Mount ECO Series (Compact Size) ASHH07KNCA

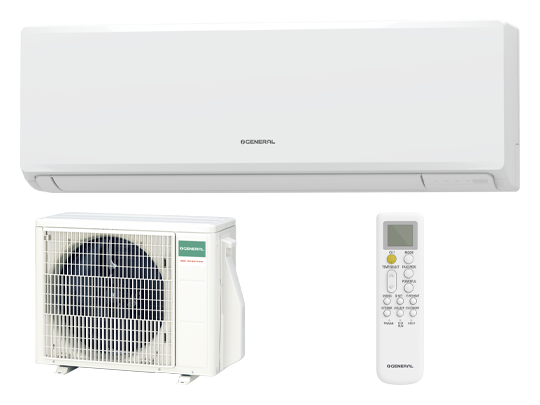

  • Indoor unit, Remote controller, Outdoor unit
ALL DC
Indoor Unit :
ASHH07KNCA
Outdoor Unit :
AOHH07KNCA
Download :
Catalogues

Features

  • Elegant & smart square design
  • High energy saving
  • Comfortable airflow & Quiet operation
  • Smart device control
  • Highly efficient operation even at high outdoor temperatures

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Powerful mode: The air conditioner operates at the maximum airflow level and compressor speed to cool or warm the room quickly. 10ºC heating operation: The room temperature can be set to not go below 10°C so that the room will not become too cold when unoccupied. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Vertical swing louver: The louver automatically swings up and down. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep. Program timer: This digital timer allows selection of one of four options: ON, OFF, ON » OFF, or OFF » ON. Filter sign: Indicates the filter cleaning period by blinking. Wireless LAN control: The optional WLAN adapter enables the air conditioner to be operated by smartphone or tablet PC from outside the home. Washable panel: Since the front panel is easy to remove, maintenance is also easy. Blue fin

Capacity

Cooling   2.0 kW
Heating   2.5 kW

Specifications

Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 2.0 (0.9 - 2.9) kW
Heating 2.5 (0.9 - 3.4) kW
Input Power Cooling 0.500 kW
Heating 0.580 kW
EER Cooling 4.00 W/W
COP Heating 4.31 W/W
Pdesign Cooling 2.0 kW
Heating (-10°C) 2.3 kW
SEER Cooling 7.80 W/W
SCOP Heating (Average) 4.40 W/W
Heating (Warmer) 5.90 W/W
Energy Efficiency Class Cooling A++
Heating (Average) A+
Heating (Warmer) A+++
Max. Operating Current Cooling 6.50 A
Heating 9.00 A
Annual Energy Consumption Cooling 90 kWh/a
Heating 731 kWh/a
Moisture Removal 1.00 l/h
Sound Pressure Level*2 Indoor (Cooling) High 36 dB(A)
Middle 33 dB(A)
Low 29 dB(A)
Quiet 20 dB(A)
Indoor (Heating) High 38 dB(A)
Middle 33 dB(A)
Low 30 dB(A)
Quiet 22 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 43 dB(A)
Outdoor (Heating) High 44 dB(A)
Sound Power Level Indoor (Cooling) High 51 dB(A)
Indoor (Heating) High 52 dB(A)
Outdoor (Cooling) High 53 dB(A)
Outdoor (Heating) High 54 dB(A)
Airflow Rate Indoor (Cooling) High 530 m³/h
Outdoor (Cooling) High 1430 m³/h
Net Dimensions
Indoor		 Height 270 mm
Width 784 mm
Depth 222 mm
Net Dimensions
Outdoor		 Height 541 mm
Width 663 mm
Depth 290 mm
Net Weight Indoor 9.0 kg
Outdoor 22.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ9.52 mm
Drain Hose Diameter φ13.8(I.D.), φ15 to φ16.8(O.D.) mm
Max. Pipe Length (Pre Charge) 20.0 (15.0) m
Max. Height Difference 15 m
Operation Range Cooling -10 to 50 °C DB
Heating -15 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 570 g (0.385 CO2eq–T)
Scroll

Dimensions

Indoor Unit : ASHH07KNCA

Indoor unit
