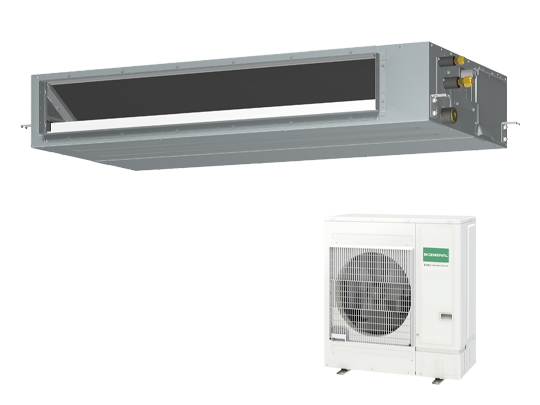

Medium Static Pressure Duct High-Efficiency & Comfort ARXH45KMTAP

Indoor Unit :
ARXH45KMTAP
Outdoor Unit :
AOHG45KBTB
Download :
Catalogues

Features

  • Slim & Compact design
  • High energy saving
  • Easy maintenance
  • Low ambient operation

Feature Icons

Low noise mode: Reduces the noise level of an outdoor unit. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Blue fin Drain pump as standard Automatic airflow adjustment: Automatically detects required airflow in each application case and adjusts the volume. External ON/OFF input Special Cooling: Special Cooling Fresh air intake: Fresh air can be taken in by a fan connected to an external control unit. Connectable fresh air duct: Outside air can be introduced by attaching a locally purchased duct to the fresh air knockout and an optional part.

Capacity

Cooling   12.1 kW
Heating   13.5 kW

Specifications

Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 12.1 (4.0 - 13.5) kW
Heating 13.5 (4.2 - 16.2) kW
Input Power Cooling 3.870 kW
Heating 3.730 kW
EER Cooling 3.13 W/W
COP Heating 3.62 W/W
Max. Operating Current Cooling 28.50 A
Heating 28.50 A
Moisture Removal 4.00 l/h
Sound Pressure Level*2 Indoor (Cooling) High 40 dB(A)
Middle 36 dB(A)
Low 32 dB(A)
Quiet 29 dB(A)
Indoor (Heating) High 40 dB(A)
Middle 36 dB(A)
Low 32 dB(A)
Quiet 29 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 57 dB(A)
Outdoor (Heating) High 57 dB(A)
Sound Power Level Indoor (Cooling) High 67 dB(A)
Indoor (Heating) High 67 dB(A)
Outdoor (Cooling) High 71 dB(A)
Outdoor (Heating) High 71 dB(A)
Airflow Rate Indoor (Cooling) High 2160 m³/h
Outdoor (Cooling) High 4450 m³/h
Static Pressure Range (standard) 30 - 150 (60) Pa
Net Dimensions
Indoor		 Height 240 mm
Width 1400 mm
Depth 700 mm
Net Dimensions
Outdoor		 Height 998 mm
Width 940 mm
Depth 320 mm
Net Weight Indoor 42.0 kg
Outdoor 67.0 kg
Connection Pipe Diameter Liquid φ9.52 mm
Gas φ15.88 mm
Drain Hose Diameter φ25(I.D.), φ32(O.D.) mm
Max. Pipe Length (Pre Charge) 50.0 (30.0) m
Max. Height Difference 30 m
Operation Range Cooling -15 to 46 °C DB
Heating -15 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 2700 g (1.823 CO2eq–T)
Scroll

Dimensions

Indoor Unit : ARXH45KMTAP
