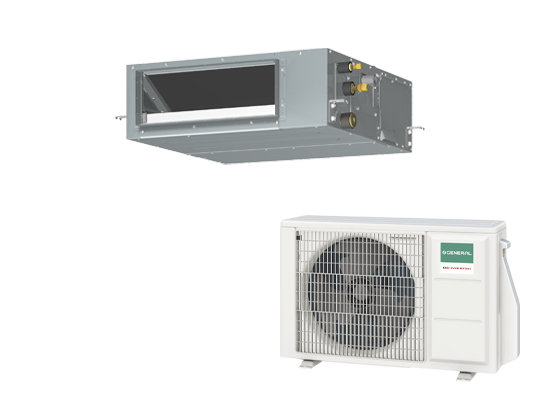

Medium Static Pressure Duct High-Efficiency & Comfort ARXH14KMTAP

Indoor Unit :
ARXH14KMTAP
Outdoor Unit :
AOHG14KBTB
Download :
Catalogues

Features

  • Slim & Compact design
  • High energy saving
  • Easy maintenance
  • Low ambient operation

Feature Icons

Low noise mode: Reduces the noise level of an outdoor unit. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Blue fin Drain pump as standard Automatic airflow adjustment: Automatically detects required airflow in each application case and adjusts the volume. External ON/OFF input Special Cooling: Special Cooling Fresh air intake: Fresh air can be taken in by a fan connected to an external control unit. Connectable fresh air duct: Outside air can be introduced by attaching a locally purchased duct to the fresh air knockout and an optional part.

Capacity

Cooling   4.3 kW
Heating   5.0 kW

Specifications

Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 4.3 (0.9 - 5.4) kW
Heating 5.0 (0.9 - 6.5) kW
Input Power Cooling 1.260 kW
Heating 1.320 kW
EER Cooling 3.40 W/W
COP Heating 3.79 W/W
Pdesign Cooling 4.3 kW
Heating (-10°C) 3.8 kW
SEER Cooling 6.10 W/W
SCOP Heating (Average) 4.00 W/W
Energy Efficiency Class Cooling A++
Heating (Average) A+
Max. Operating Current Cooling 10.20 A
Heating 10.20 A
Annual Energy Consumption Cooling 255 kWh/a
Heating 1330 kWh/a
Moisture Removal 1.30 l/h
Sound Pressure Level*2 Indoor (Cooling) High 32 dB(A)
Middle 29 dB(A)
Low 27 dB(A)
Quiet 25 dB(A)
Indoor (Heating) High 32 dB(A)
Middle 29 dB(A)
Low 27 dB(A)
Quiet 25 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 49 dB(A)
Outdoor (Heating) High 49 dB(A)
Sound Power Level Indoor (Cooling) High 59 dB(A)
Indoor (Heating) High 59 dB(A)
Outdoor (Cooling) High 62 dB(A)
Outdoor (Heating) High 62 dB(A)
Airflow Rate Indoor (Cooling) High 800 m³/h
Outdoor (Cooling) High 1670 m³/h
Static Pressure Range (standard) 30 - 150 (40) Pa
Net Dimensions
Indoor		 Height 240 mm
Width 700 mm
Depth 700 mm
Net Dimensions
Outdoor		 Height 542 mm
Width 799 mm
Depth 290 mm
Net Weight Indoor 24.0 kg
Outdoor 33.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ9.52 mm
Drain Hose Diameter φ25(I.D.), φ32(O.D.) mm
Max. Pipe Length (Pre Charge) 25.0 (15.0) m
Max. Height Difference 20 m
Operation Range Cooling -15 to 46 °C DB
Heating -15 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 850 g (0.574 CO2eq–T)
Scroll

Dimensions

Indoor Unit : ARXH14KMTAP
