Wall Mount Standard Series (High Efficiency & Large Rooms) ASHH36KMTB

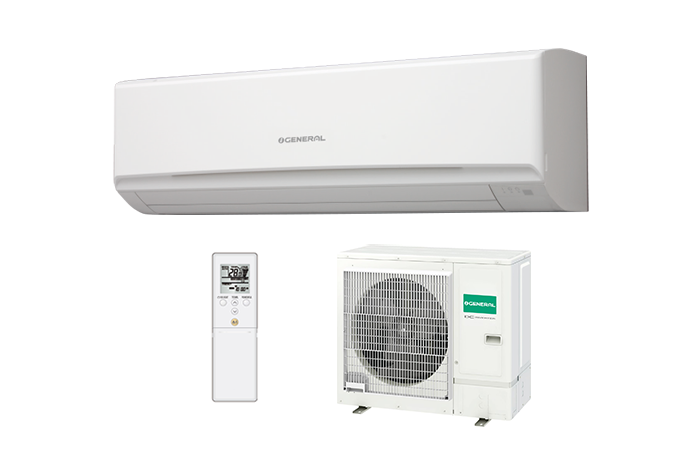

Indoor unit, remote controller, outdoor unit

All DC
Indoor Unit :
ASHH36KMTB
Outdoor Unit :
AOHH36KMTB
Download :
Catalogues

Features

  • Small and lightweight outdoor unit
  • Human sensor
  • R32 refrigerant employed
  • Smart device control (optional)

Feature Icons

Human sensor (Energy Saving): The air conditioner switches to operate on reduced power when it detects no human movement in the room. Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Powerful mode: The air conditioner operates at the maximum airflow level and compressor speed to cool or warm the room quickly. 10ºC heating operation: The room temperature can be set to not go below 10°C so that the room will not become too cold when unoccupied. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Low noise mode: Reduces the noise level of an outdoor unit. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Automatic double swings: Activates complex swing action of the louver in both horizontal and vertical directions. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep. Program timer: This digital timer allows selection of one of four options: ON, OFF, ON » OFF, or OFF » ON. Weekly timer: Different ON-OFF times can be set for each day. Filter sign: Indicates the filter cleaning period by blinking. Ion deodorization filter: The filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by an ultra-fine-particle ceramic. Apple-catechin filter: The Apple-catechin filter uses static electricity to clean fine particles and dust from the air. Washable panel: Since the front panel is easy to remove, maintenance is also easy. Blue fin

Capacity

Cooling   9.4 kW
Heating   10.1 kW

Specifications

Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 9.4 (2.9 - 10.0) kW
Heating 10.1 (2.7 - 12.6) kW
Input Power Cooling 3.160 kW
Heating 2.730 kW
EER Cooling 2.97 W/W
COP Heating 3.70 W/W
Pdesign Cooling 9.4 kW
Heating (-10°C) 7.1 kW
SEER Cooling 6.10 W/W
SCOP Heating (Average) 4.50 W/W
Energy Efficiency Class Cooling A++
Heating (Average) A+
Max. Operating Current Cooling 21.50 A
Heating 21.50 A
Annual Energy Consumption Cooling 534 kWh/a
Heating 2189 kWh/a
Moisture Removal 3.80 l/h
Sound Pressure Level*2 Indoor (Cooling) High 50 dB(A)
Middle 44 dB(A)
Low 40 dB(A)
Quiet 33 dB(A)
Indoor (Heating) High 49 dB(A)
Middle 44 dB(A)
Low 39 dB(A)
Quiet 33 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 55 dB(A)
Outdoor (Heating) High 55 dB(A)
Sound Power Level Indoor (Cooling) High 65 dB(A)
Indoor (Heating) High 65 dB(A)
Outdoor (Cooling) High 70 dB(A)
Outdoor (Heating) High 70 dB(A)
Airflow Rate Indoor (Cooling) High 1330 m³/h
Outdoor (Cooling) High 3750 m³/h
Net Dimensions
Indoor		 Height 340 mm
Width 1150 mm
Depth 280 mm
Net Dimensions
Outdoor		 Height 788 mm
Width 940 mm
Depth 320 mm
Net Weight Indoor 18.5 kg
Outdoor 52.0 kg
Connection Pipe Diameter Liquid φ9.52 mm
Gas φ15.88 mm
Drain Hose Diameter φ13.8(I.D.), φ15.8 to φ16.7(O.D.) mm
Max. Pipe Length (Pre Charge) 50.0 (30.0) m
Max. Height Difference 30 m
Operation Range Cooling -15 to 46 °C DB
Heating -15 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 1900 g (1.283 CO2eq–T)
Scroll

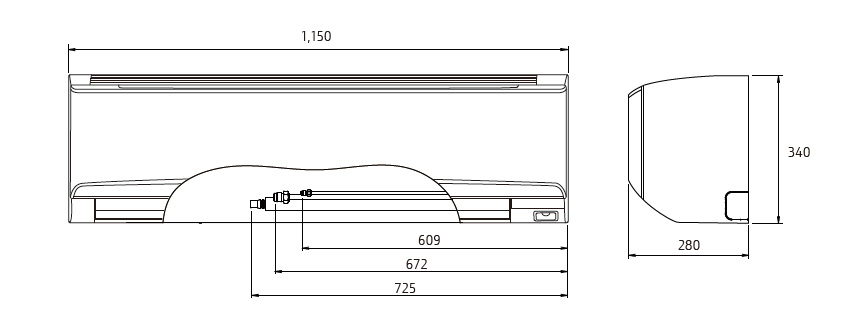

Dimensions

Indoor Unit : ASHH36KMTB

Indoor unit
