Wall Mount Standard Series (High Efficiency & Large Rooms) ASHG24KMTE

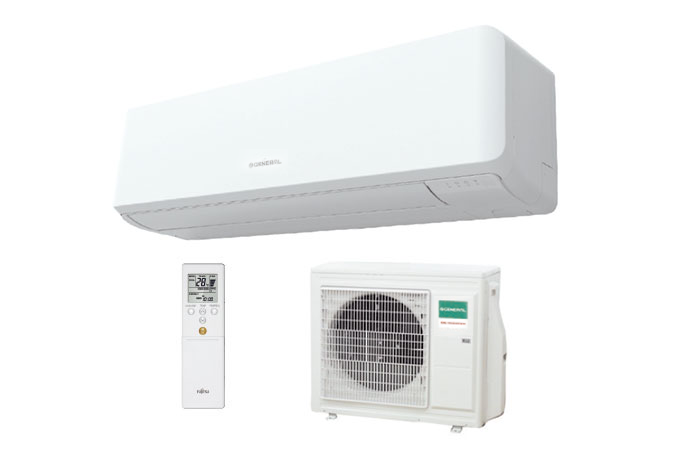

Indoor unit, remote controller, outdoor unit

All DC
Indoor Unit :
ASHG24KMTE
Outdoor Unit :
AOHG24KMTA
Download :
Catalogues

Features

  • Outstanding energy-saving performance
  • Smart device control (optional)
  • Easy access to the flare pipe connection

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Powerful mode: The air conditioner operates at the maximum airflow level and compressor speed to cool or warm the room quickly. 10ºC heating operation: The room temperature can be set to not go below 10°C so that the room will not become too cold when unoccupied. Low noise mode: Reduces the noise level of an outdoor unit. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Vertical swing louver: The louver automatically swings up and down. Automatic double swings: Activates complex swing action of the louver in both horizontal and vertical directions. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep. Program timer: This digital timer allows selection of one of four options: ON, OFF, ON » OFF, or OFF » ON. Weekly timer: Different ON-OFF times can be set for each day. Filter sign: Indicates the filter cleaning period by blinking. Ion deodorization filter: The filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by an ultra-fine-particle ceramic. Apple-catechin filter: The Apple-catechin filter uses static electricity to clean fine particles and dust from the air. Washable panel: Since the front panel is easy to remove, maintenance is also easy.

Capacity

Cooling   7.1 kW
Heating   8.0 kW

Specifications

Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 7.1 (0.9 - 8.3) kW
Heating 8.0 (0.9 - 10.1) kW
Input Power Cooling 2.080 kW
Heating 1.910 kW
EER Cooling 3.41 W/W
COP Heating 4.19 W/W
Pdesign Cooling 7.1 kW
Heating (-10°C) 7.1 kW
SEER Cooling 7.30 W/W
SCOP Heating (Average) 4.20 W/W
Energy Efficiency Class Cooling A++
Heating (Average) A+
Max. Operating Current Cooling 13.50 A
Heating 16.00 A
Annual Energy Consumption Cooling 340 kWh/a
Heating 2362 kWh/a
Moisture Removal 2.70 l/h
Sound Pressure Level*2 Indoor (Cooling) High 49 dB(A)
Middle 40 dB(A)
Low 35 dB(A)
Quiet 29 dB(A)
Indoor (Heating) High 49 dB(A)
Middle 40 dB(A)
Low 35 dB(A)
Quiet 29 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 54 dB(A)
Outdoor (Heating) High 52 dB(A)
Sound Power Level Indoor (Cooling) High 65 dB(A)
Indoor (Heating) High 65 dB(A)
Outdoor (Cooling) High 67 dB(A)
Outdoor (Heating) High 66 dB(A)
Airflow Rate Indoor (Cooling) High 1170 m³/h
Outdoor (Cooling) High 3240 m³/h
Net Dimensions
Indoor		 Height 280 mm
Width 980 mm
Depth 240 mm
Net Dimensions
Outdoor		 Height 716 mm
Width 820 mm
Depth 315 mm
Net Weight Indoor 13.0 kg
Outdoor 42.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ12.7 mm
Drain Hose Diameter φ13.8(I.D.), φ15.8 to φ16.7(O.D.) mm
Max. Pipe Length (Pre Charge) 30.0 (15.0) m
Max. Height Difference 25 m
Operation Range Cooling -10 to 46 °C DB
Heating -15 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 1320 g (0.891 CO2eq–T)
Scroll

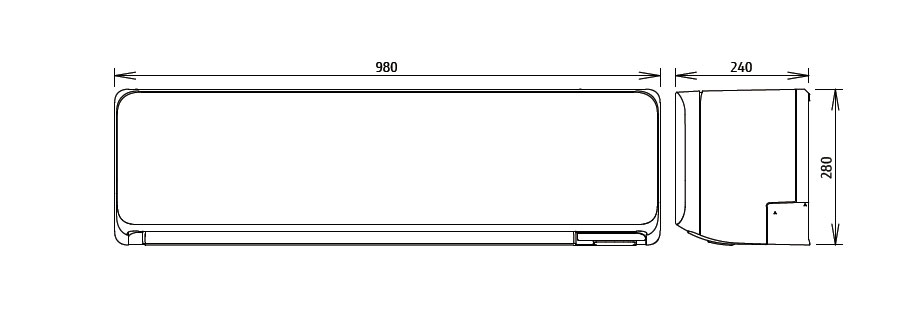

Dimensions

Indoor Unit : ASHG24KMTE

Indoor unit
