Slim Duct ARXG14KLLAP

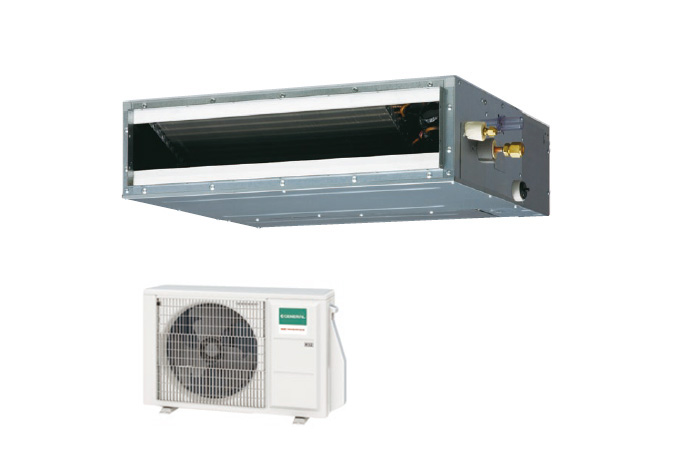

Indoor unit, remote controller, outdoor unit

All DC V-PAM
Indoor Unit :
ARXG14KLLAP
Outdoor Unit :
AOHG14KBTB
Download :
Catalogues

Features

  • Slim design
  • Compact and lightweight outdoor unit
  • Selectable from a wide range of static pressure
  • Auto Louver Grille Kit (optional)
  • Low ambient operation

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Weekly & Temperature setback timer: Weekly & Temperature setback timer can set the temperature for 2-time spans and for each day of the week. Filter sign: Indicates the filter cleaning period by blinking. Drain pump equipped as standard

Capacity

Cooling   4.3 kW
Heating   5.0 kW

Specifications

Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 4.3 (0.9 - 5.4) kW
Heating 5.0 (0.9 - 6.5) kW
Input Power Cooling 1.280 kW
Heating 1.320 kW
EER Cooling 3.36 W/W
COP Heating 3.79 W/W
Pdesign Cooling 4.3 kW
Heating (-10°C) 3.8 kW
SEER Cooling 5.80 W/W
SCOP Heating (Average) 3.90 W/W
Energy Efficiency Class Cooling A+
Heating (Average) A
Max. Operating Current Cooling 10.20 A
Heating 10.20 A
Annual Energy Consumption Cooling 259 kWh/a
Heating 1362 kWh/a
Moisture Removal 1.50 l/h
Sound Pressure Level*2 Indoor (Cooling) High 32 dB(A)
Middle 30 dB(A)
Low 28 dB(A)
Quiet 26 dB(A)
Indoor (Heating) High 32 dB(A)
Middle 30 dB(A)
Low 28 dB(A)
Quiet 25 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 49 dB(A)
Outdoor (Heating) High 49 dB(A)
Sound Power Level Indoor (Cooling) High 60 dB(A)
Indoor (Heating) High 60 dB(A)
Outdoor (Cooling) High 62 dB(A)
Outdoor (Heating) High 62 dB(A)
Airflow Rate Indoor (Cooling) High 800 m³/h
Outdoor (Cooling) High 1670 m³/h
Static Pressure Range (standard) 0 - 90 (25) Pa
Net Dimensions
Indoor		 Height 198 mm
Width 700 mm
Depth 620 mm
Net Dimensions
Outdoor		 Height 542 mm
Width 799 mm
Depth 290 mm
Net Weight Indoor 17.0 kg
Outdoor 33.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ9.52 mm
Drain Hose Diameter φ25(I.D.), φ32(O.D.) mm
Max. Pipe Length (Pre Charge) 25.0 (15.0) m
Max. Height Difference 20 m
Operation Range Cooling -15 to 46 °C DB
Heating -15 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 850 g (0.574 CO2eq–T)
Scroll

Dimensions

Indoor Unit : ARXG14KLLAP

Indoor unit
