Floor Standard Series (Compact & Comfort) AGHG14KVCA

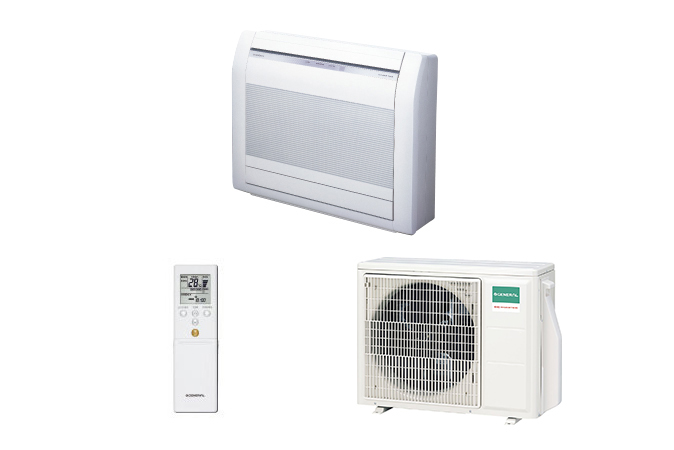

Indoor unit and outdoor unit

All DC V-PAM
Indoor Unit :
AGHG14KVCA
Outdoor Unit :
AOHG14KVCA
Download :
Catalogues

Features

  • High Energy Saving
  • Flexible and easy installation
  • Flexible pipe connection enables draining and piping in 6 directions
  • Smart device control (optional)
  • 10ºC heating operation
  • Low ambient operation

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. 10ºC heating operation: The room temperature can be set to not go below 10°C so that the room will not become too cold when unoccupied. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Vertical swing louver: The louver automatically swings up and down. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep. Program timer: This digital timer allows selection of one of four options: ON, OFF, ON » OFF, or OFF » ON. Filter sign: Indicates the filter cleaning period by blinking. Ion deodorization filter: The filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by an ultra-fine-particle ceramic. Apple-catechin filter: The Apple-catechin filter uses static electricity to clean fine particles and dust from the air. Washable panel: Since the front panel is easy to remove, maintenance is also easy.

Options

Setting temperature range limitation: Sets the minimum and maximum limits on room temperature to establish the right balance between energy saving and a comfortable environment. Set temperature auto return: The setting temperature automatically returns to the previously set temperature. Auto-off timer: Automatically stops operation when a fixed time has elapsed from the start of operation. Weekly & Temperature setback timer: Weekly & Temperature setback timer can set the temperature for 2-time spans and for each day of the week. External ON/OFF input Special Cooling: Special Cooling

Capacity

Cooling   4.2 kW
Heating   5.2 kW

RANK 5

Specifications

Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 4.2 (0.9 - 5.2) kW
Heating 5.2 (0.9 - 6.3) kW
Input Power Cooling 1.060 kW
Heating 1.410 kW
EER Cooling 3.95 W/W
COP Heating 3.70 W/W
Pdesign Cooling 4.2 kW
Heating (-10°C) 4.2 kW
SEER Cooling 8.10 W/W
SCOP Heating (Average) 4.00 W/W
Energy Efficiency Class Cooling A++
Heating (Average) A+
Max. Operating Current Cooling 11.00 A
Heating 12.00 A
Annual Energy Consumption Cooling 181 kWh/a
Heating 1466 kWh/a
Moisture Removal 2.10 l/h
Sound Pressure Level*2 Indoor (Cooling) High 44 dB(A)
Middle 38 dB(A)
Low 31 dB(A)
Quiet 22 dB(A)
Indoor (Heating) High 43 dB(A)
Middle 37 dB(A)
Low 29 dB(A)
Quiet 22 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 51 dB(A)
Outdoor (Heating) High 50 dB(A)
Sound Power Level Indoor (Cooling) High 57 dB(A)
Indoor (Heating) High 56 dB(A)
Outdoor (Cooling) High 63 dB(A)
Outdoor (Heating) High 63 dB(A)
Airflow Rate Indoor (Cooling) High 650 m³/h
Outdoor (Cooling) High 2210 m³/h
Net Dimensions
Indoor		 Height 600 mm
Width 740 mm
Depth 200 mm
Net Dimensions
Outdoor		 Height 632 mm
Width 799 mm
Depth 290 mm
Net Weight Indoor 14.0 kg
Outdoor 38.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ9.52 mm
Drain Hose Diameter φ13.8(I.D.), φ15.8 to φ16.7(O.D.) mm
Max. Pipe Length (Pre Charge) 20 (15.0) m
Max. Height Difference 15 m
Operation Range Cooling -10 to 46 °C DB
Heating -15 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 940 g (0.635 CO2eq–T)
