Wall Mount ECO Series (Compact Size) ASHG12KPCE

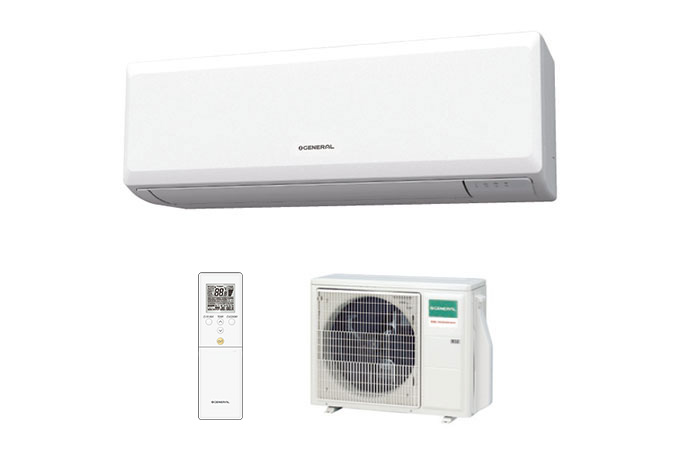

Indoor unit, remote controller, outdoor unit

All DC
Indoor Unit :
ASHG12KPCE
Outdoor Unit :
AOHG12KPCA
Download :
Catalogues

Features

  • Slim and stylish square design
  • Outstanding energy-saving performance
  • Comfortable airflow and quiet operation
  • Smart device control (optional)
  • Easy access to the flare pipe connection

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Powerful mode: The air conditioner operates at the maximum airflow level and compressor speed to cool or warm the room quickly. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Vertical swing louver: The louver automatically swings up and down. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep. Program timer: This digital timer allows selection of one of four options: ON, OFF, ON » OFF, or OFF » ON. Filter sign: Indicates the filter cleaning period by blinking. Washable panel: Since the front panel is easy to remove, maintenance is also easy.

Capacity

Cooling   3.4 kW
Heating   3.8 kW

Specifications

Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 3.4 (0.9 - 3.7) kW
Heating 3.8 (0.9 - 4.8) kW
Input Power Cooling 1.000 kW
Heating 1.140 kW
EER Cooling 3.40 W/W
COP Heating 3.33 W/W
Pdesign Cooling 3.4 kW
Heating (-10°C) 2.5 kW
SEER Cooling 6.30 W/W
SCOP Heating (Average) 4.10 W/W
Energy Efficiency Class Cooling A++
Heating (Average) A+
Max. Operating Current Cooling 6.50 A
Heating 9.00 A
Annual Energy Consumption Cooling 189 kWh/a
Heating 853 kWh/a
Moisture Removal 1.80 l/h
Sound Pressure Level*2 Indoor (Cooling) High 46 dB(A)
Middle 40 dB(A)
Low 33 dB(A)
Quiet 22 dB(A)
Indoor (Heating) High 46 dB(A)
Middle 40 dB(A)
Low 35 dB(A)
Quiet 27 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 49 dB(A)
Outdoor (Heating) High 51 dB(A)
Sound Power Level Indoor (Cooling) High 59 dB(A)
Indoor (Heating) High 59 dB(A)
Outdoor (Cooling) High 62 dB(A)
Outdoor (Heating) High 62 dB(A)
Airflow Rate Indoor (Cooling) High 630 m³/h
Outdoor (Cooling) High 1700 m³/h
Net Dimensions
Indoor		 Height 270 mm
Width 784 mm
Depth 224 mm
Net Dimensions
Outdoor		 Height 541 mm
Width 663 mm
Depth 290 mm
Net Weight Indoor 8.0 kg
Outdoor 25.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ9.52 mm
Drain Hose Diameter φ13.8(ID) φ15 to φ16.8(O.D.) mm
Max. Pipe Length (Pre Charge) 20.0 (15.0) m
Max. Height Difference 15 m
Operation Range Cooling -10 to 46 °C DB
Heating -15 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 590 g (0.398 CO2eq–T)
Scroll

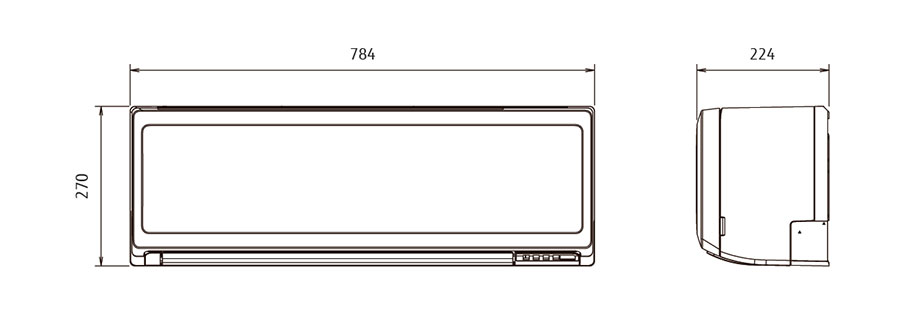

Dimensions

Indoor Unit : ASHG12KPCE

Indoor unit
