Wall Mount ECO Series (Cooling-enhanced type) ASHH07KLTA

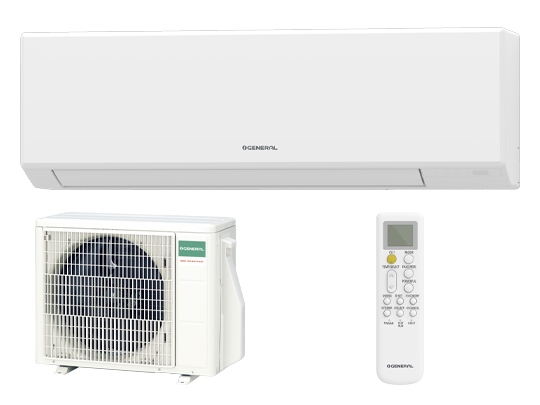

  • Indoor unit, Remote controller, Outdoor unit
ALL DC
Indoor Unit :
ASHH07KLTA
Outdoor Unit :
AOHH07KLTA
Download :
Catalogues

Features

  • MINIMAL SMART design
  • High energy saving
  • Comfortable airflow & Quiet operation
  • Smart device control (Option)
  • Highly efficient operation even at high outdoor temperatures

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Powerful mode: The air conditioner operates at the maximum airflow level and compressor speed to cool or warm the room quickly. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Vertical swing louver: The louver automatically swings up and down. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep. Program timer: This digital timer allows selection of one of four options: ON, OFF, ON » OFF, or OFF » ON. Filter sign: Indicates the filter cleaning period by blinking. Washable panel: Since the front panel is easy to remove, maintenance is also easy. Blue fin

Capacity

Cooling   2.0 kW
Heating   2.4 kW

Specifications

Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 2.0 (0.9 - 2.8) kW
Heating 2.4 (0.9 - 3.3) kW
Input Power Cooling 0.540 kW
Heating 0.640 kW
EER Cooling 3.70 W/W
COP Heating 3.75 W/W
Pdesign Cooling 2.0 kW
Heating (-10°C) 2.2 kW
SEER Cooling 7.10 W/W
SCOP Heating (Average) 4.10 W/W
Heating (Warmer) 5.10 W/W
Energy Efficiency Class Cooling A++
Heating (Average) A+
Heating (Warmer) A+++
Max. Operating Current Cooling 6.00 A
Heating 6.00 A
Annual Energy Consumption Cooling 99 kWh/a
Heating 752 kWh/a
Moisture Removal 0.18 l/h
Sound Pressure Level*2 Indoor (Cooling) High 41 dB(A)
Middle 36 dB(A)
Low 29 dB(A)
Quiet 21 dB(A)
Indoor (Heating) High 41 dB(A)
Middle 37 dB(A)
Low 32 dB(A)
Quiet 23 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 47 dB(A)
Outdoor (Heating) High 47 dB(A)
Sound Power Level Indoor (Cooling) High 54 dB(A)
Indoor (Heating) High 55 dB(A)
Outdoor (Cooling) High 56 dB(A)
Outdoor (Heating) High 57 dB(A)
Airflow Rate Indoor (Cooling) High 600 m³/h
Outdoor (Cooling) High 1650 m³/h
Net Dimensions
Indoor		 Height 250 mm
Width 770 mm
Depth 218 mm
Net Dimensions
Outdoor		 Height 541 mm
Width 663 mm
Depth 290 mm
Net Weight Indoor 7.0 kg
Outdoor 19.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ9.52 mm
Drain Hose Diameter φ13.8(I.D.), φ15 to φ16.8(O.D.) mm
Max. Pipe Length (Pre Charge) 20.0 (15.0) m
Max. Height Difference 15 m
Operation Range Cooling 10 to 52 °C DB
Heating -15 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 530 g (0.358 CO2eq–T)
Scroll

Dimensions

Indoor Unit : ASHH07KLTA

Indoor unit
