Medium Static Pressure Duct (Standard) ARXG24KMLA

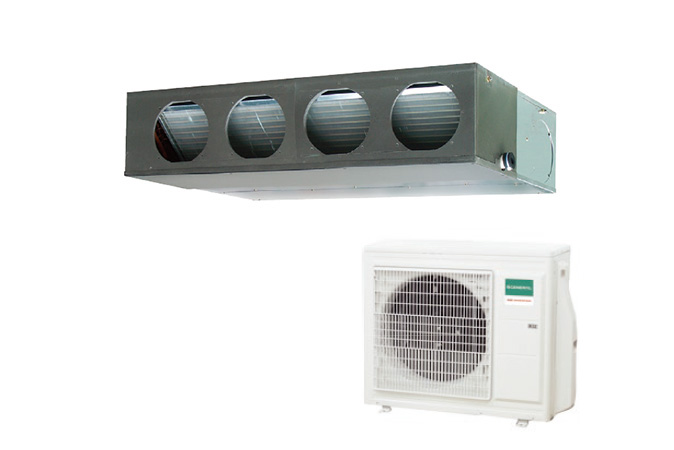

Indoor unit, remote controller, outdoor unit

All DC i-PAM V-PAM
Indoor Unit :
ARXG24KMLA
Outdoor Unit :
AOHG24KBTB
Download :
Catalogues

Features

  • Slim and compact design
  • Easy maintenance
  • Drain pipe can be installed on either the left or right side of the unit
  • Low ambient operation across classes

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Connectable fresh air duct: Outside air can be introduced by attaching a locally purchased duct to the fresh air knockout and an optional part. Connectable distributing duct: Locally purchased branch ducts can be attached to the systems to distribute the airflow. Weekly & Temperature setback timer: Weekly & Temperature setback timer can set the temperature for 2-time spans and for each day of the week. Filter sign: Indicates the filter cleaning period by blinking. Blue fin

Capacity

Cooling   6.8 kW
Heating   7.5 kW

Specifications

Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 6.8 (0.9 - 8.0) kW
Heating 7.5 (0.9 - 9.1) kW
Input Power Cooling 2.140 kW
Heating 1.970 kW
EER Cooling 3.18 W/W
COP Heating 3.80 W/W
Pdesign Cooling 6.8 kW
Heating (-10°C) 6.0 kW
SEER Cooling 6.20 W/W
SCOP Heating (Average) 4.10 W/W
Energy Efficiency Class Cooling A++
Heating (Average) A+
Max. Operating Current Cooling 13.6 A
Heating 13.6 A
Annual Energy Consumption Cooling 384 kWh/a
Heating 2045 kWh/a
Moisture Removal 2.5 l/h
Sound Pressure Level*2 Indoor (Cooling) High 31 dB(A)
Middle 29 dB(A)
Low 27 dB(A)
Quiet 25 dB(A)
Indoor (Heating) High 31 dB(A)
Middle 29 dB(A)
Low 27 dB(A)
Quiet 25 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 53 dB(A)
Outdoor (Heating) High 54 dB(A)
Sound Power Level Indoor (Cooling) High 60 dB(A)
Indoor (Heating) High 62 dB(A)
Outdoor (Cooling) High 65 dB(A)
Outdoor (Heating) High 66 dB(A)
Airflow Rate Indoor (Cooling) High 1100 m³/h
Outdoor (Cooling) High 2700 m³/h
Static Pressure Range (standard) 30 - 150 (35) Pa
Net Dimensions
Indoor		 Height 270 mm
Width 1135 mm
Depth 700 mm
Net Dimensions
Outdoor		 Height 716 mm
Width 820 mm
Depth 315 mm
Net Weight Indoor 35.0 kg
Outdoor 42.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ12.7 mm
Max. Pipe Length (Pre Charge) 30 (20.0) m
Max. Height Difference 25 m
Operation Range Cooling -15 to 46 °C DB
Heating -15 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 1250 g (0.844 CO2eq–T)
Scroll

Dimensions

Indoor Unit : ARXG24KMLA

Indoor unit
