Features
Air conditioner switching can be controlled by connecting this External Switch Controller to other sensor switches.
- In combination with a commercially available card-key switch or other sensors, this External Switch Controller enables the control of On/Off, room temperature, and fan speed of connected air conditioners as well as master control. This makes this product an ideal choice for use in hotel rooms.
- Card-key or other sensor switches are commercially available for purchase.

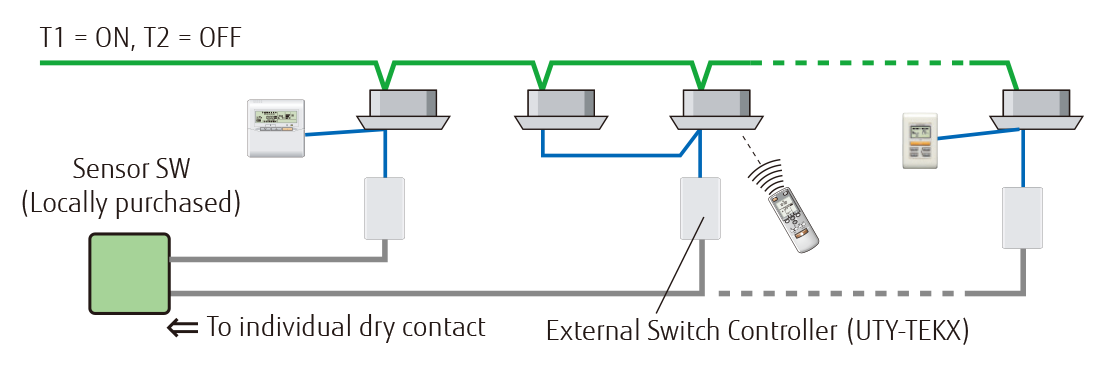

Installation example
![](/shared/eu/img-0000-vrf-utyekx-installation-example-01.png)

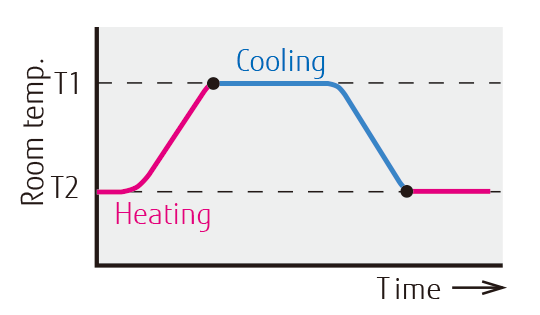

Auto mode operation, which switches air conditioners between cooling and heating operations automatically, is enabled by the combination of the sensor switch and an External Switch Controller.
- Note 1.
- All indoor units operate in the same mode.
- Note 2.
- Select a thermosensor switch capable of setting T1 and T2 temperatures.
- Note 3.
- The remote controller overrides the auto mode operation.
![](/shared/eu/img-0000-vrf-utyekx-graph-01.png)
Specifications
Model Name | UTY-TERX | |
---|---|---|
Power Supply | 6.5 to 16 V DC | |
Net Dimensions | Height | 140 mm |
Width | 117 mm | |
Depth | 43 mm | |
Net Weight | 250 g |
Scroll
- *
- 12 V DC supplied by an indoor unit
