Network Converter for LONWORKS® UTY-VLGX
![Adapters & Converters Adapters & Converters](/shared/eu/img-0000-uty-vlgx-vsgxz1-vggxz1-01.png)
- Max. number of controllable converters :
- 4 Network Converters to BMS
- Max. number of controllable units :
- 100 outdoor units,128 indoor units
- Download :
-
Catalogues
Features
Installation example
![](/shared/eu/img-0000-vrf-uty-vlgx-installation-example-01.jpg)
Specifications
Model Name | UTY-VLGX | |
---|---|---|
Power Supply | Phase | Single phase |
Voltage | 208 ~ 240 V | |
Frequency | 50/60 Hz | |
Net Dimensions | Height | 67 mm |
Width | 288 mm | |
Depth | 211 mm | |
Net Weight | 1,500 g | |
Power Consumption | 4.5 W |
Scroll
Transmission specifications (BMS side)
- Transmission speed
- 78 kbps
- Transceiver
- FT-X1 (available from Echelon® Corporation)
- Transmission line form
- Free topology
- Terminal resistor
- None (converter to be attached at the terminal of a network)

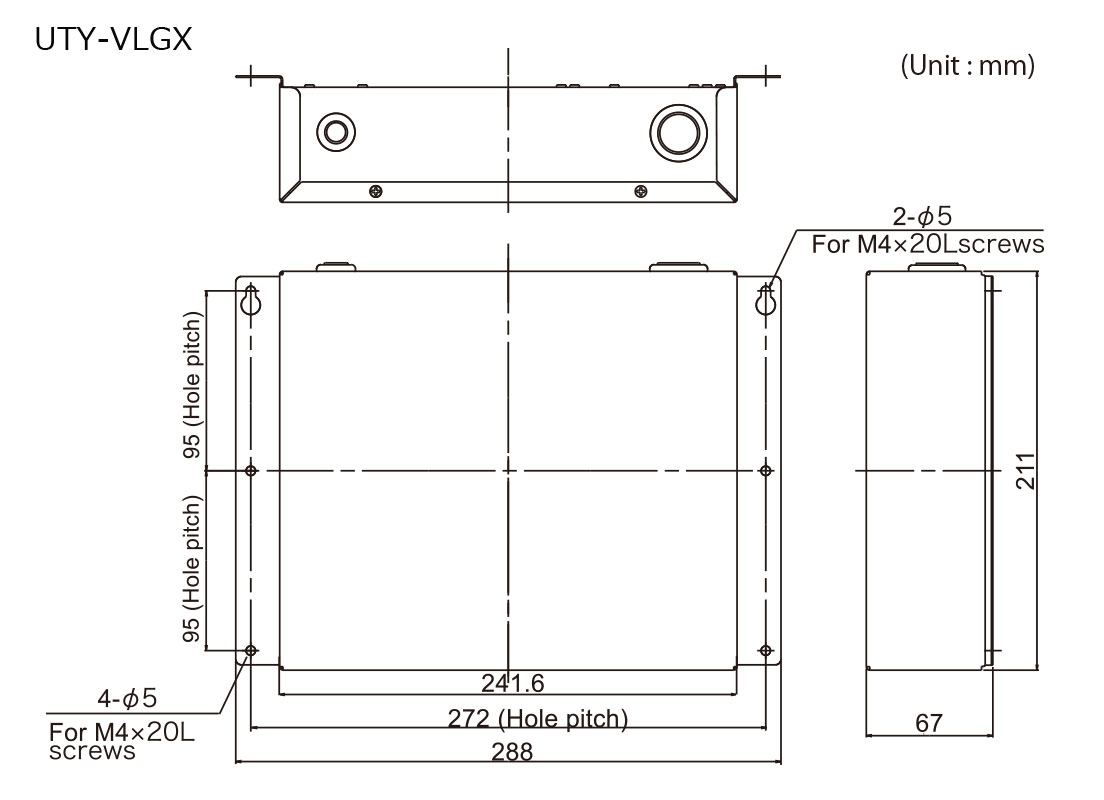

Dimensions
![](/shared/eu/img-0000-vrf-dimension-uty-vlgx-01.jpg)
