Wireless LAN Adapter FG-AC-WIF1Z1

Adapters & Converters

Download :
Catalogues

Features

IntesisHome.

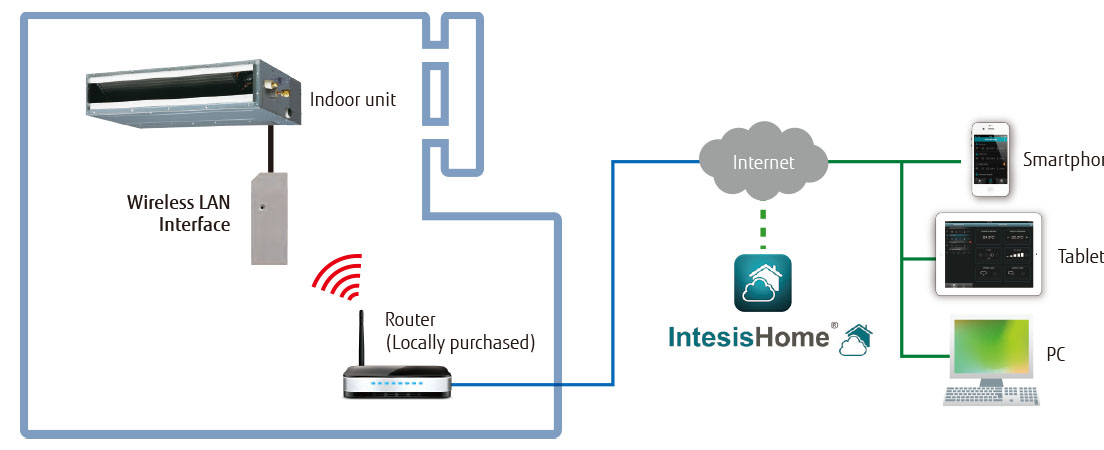

  • This adapter provides the most advanced solution for the remote management of an air conditioning system by using smartphones, tablets, and PCs.
  • No separate external power supply required
  • Can be used for a single indoor unit or up to 16 group-controlled indoor units.

Basic control

  • Turning an air conditioner on and off
  • Mode select (Heating, Cooling, Dry, Auto, Fan)
  • Fan speed control
  • Louver position (airflow direction setting)
  • Room temperature display
  • Setting temperature
  • Multiple language support
  • Single scene selection and Timer

Advanced control (optional functions)

  • Weather-based operation modes (ECO, Comfort, and Powerful) (to be available in the future)
  • Time-programmable functions (On/Off, modes, set temperature, fan speed, louver position)
  • Setting temperature range limitation (to be available in the future)
  • Multiple scene selection, timer, and calendar

Notification and operation log

  • E-mail alert (to be available in the future)
  • Air conditioning malfunction alert
  • Connectivity monitoring and alert
  • Operation log (to be available in the future)

Specifications

Model Name FG-AC-WIF1Z1
Net Dimensions Height 70 mm
Width 108 mm
Depth 28 mm
Net Weight 80 g
