BACnet® Gateway (Hardware) UTY-VBGX
![](/shared/eu/img-0000-vrf-uty-vbgx-01.png)
- Max. number of connectable systems :
- 1 VRF network system
- Max. number of controllable systems :
- 32 refrigerant systems
- Max. number of controllable units :
- 128 indoor units
Features
- The BACnet® Gateway connects to BMS and a Fujitsu General VRF system.
- Up to 128 indoor units and 32 refrigerant systems can be connected to a single BACnet® Gateway.
- Compatible with BACnet® (ANSI / ASHRAE-135-2010) application-specific controller (B-ASC)
- Compatible with BACnet®/IP over Ethernet

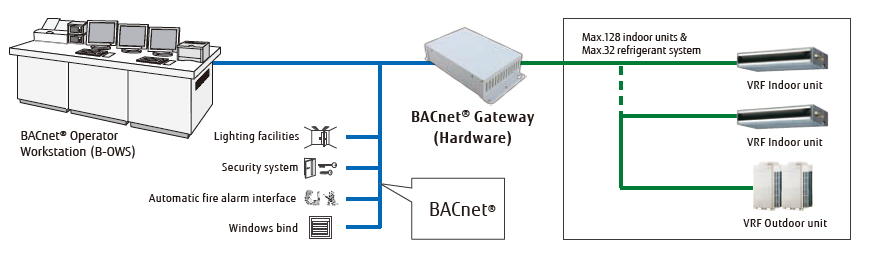

Installation example
![](/shared/eu/img-0000-vrf-adaptor-uty-vbgx-Installation-example-01.jpg)
Specifications
Model Name | UTY-VBGX | |
---|---|---|
Power Supply | Phase | single phase |
Voltage | 100 ~ 240 V | |
Frequency | 50/60 Hz | |
Net Dimensions | Height | 59.6 mm |
Width | 270.4 mm | |
Depth | 176 mm | |
Net Weight | 1,200 g | |
Power Consumption | Max. 4.6 W | |
Max. Number of Controllable Indoor Units | 128 | |
Max. Number of Controllable Refrigerant Systems | 32 | |
Max. Number of Connectable VRF Networks | 1 | |
Max. Number of Connectable Units per VRF Networks | 4 |
