Wireless Remote Controller UTY-LNHG

Controller

Max. number of controllable units :
16 indoor units
Selectable :
4-setting daily timer
Download :
Catalogues

Features

Simple and versatile operations with a choice of 4 different types of timers

  • Controls up to 16 indoor units.

Built-in timer

4 timer programs: ON/OFF/Program/Sleep

Program timer: Sets ON/OFF time once for every 24 hours.

Sleep timer: Adjusts the set temperature automatically while the sleep timer is on.

Easy installation and operation

Different codes can be assigned to up to 4 indoor units to prevent a mix-up.

Wide and precise transmitting range

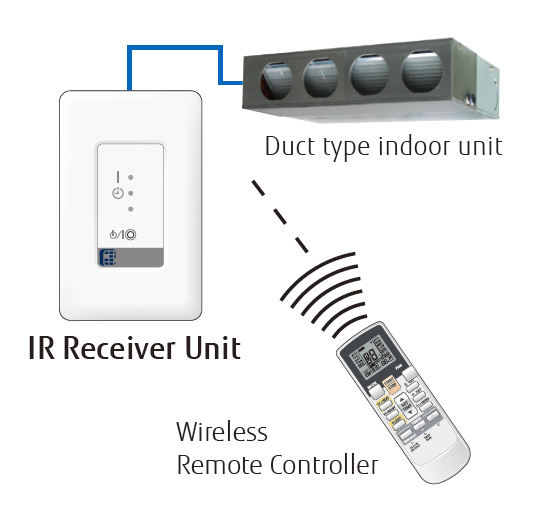

IR Receiver Units

UTB-YWC

This IR Receiver Unit allows a Wireless Remote Controller to control a Duct type indoor unit*.

*
Large Airflow Duct types do not work with this IR Receiver Unit.

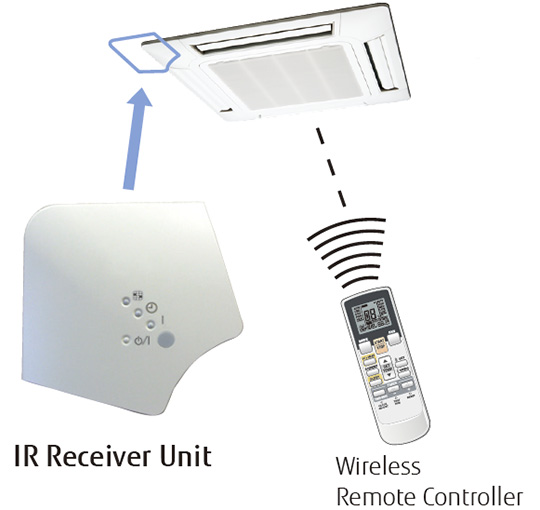

UTY-LRHYB1

This IR Receiver Unit allows a Wireless Remote Controller to control a Cassette type indoor unit.

Specifications

Model Name UTY-LNHG
Net Dimensions Height 170 mm
Width 56 mm
Depth 19 mm
Net Weight 85 g
Battery 1.5 V (R03/LR03/AAA) × 2
Scroll
12 V DC supplied by an indoor unit

Specifications

Model Name UTB-YWC
Net Dimensions Height 145 mm
Width 90 mm
Depth 30 mm
Net Weight 150 g
Power Supply 5 V DC
Scroll

Specifications

Model Name UTY-LRHYB1
Net Dimensions Height 193.9 mm
Width 193.9 mm
Depth 31.2 mm
Net Weight 140 g
Power Supply 5 V DC
