BACnet® Gateway UTY-ABGXZ1
![White-USB-key (Software Protection Key) White-USB-key (Software Protection Key)](/shared/eu/img-0000-vrf-uty-abgxz1-01.png)
- Max. number of controllable systems :
- 4 VRF network systems
- Max. number of controllable units :
- 400 outdoor units,1,600 indoor units
- Download :
-
Catalogues
Features
- Medium to large BMS can be connected to a VRF network system via BACnet®, a standard communication protocol for open networks.
- Up to 1,600 indoor units on up to 4 VRF network systems (up to 400 indoor units and 100 outdoor units per system) can be connected to a single BACnet® Gateway.
- The VRF network system can be controlled or monitored from BMS via BACnet® Gateway.
- Compatible with BACnet® (ANSI / ASHRAE-135-2012) application-specific controller (B-ASC)
- Compatible with BACnet®/IP over Ethernet
- Scheduling, alarm and event setting, and energy cost allocation are provided on the BACnet® Gateway.
- The VRF network system can be connected to a computer via U10 USB interface. Note that Fujitsu General does not supply a U10 USB interface or a computer. They must be purchased separately by the user.
- Supports 7 languages: Chinese, English, French, German, Polish, Russian, and Spanish.

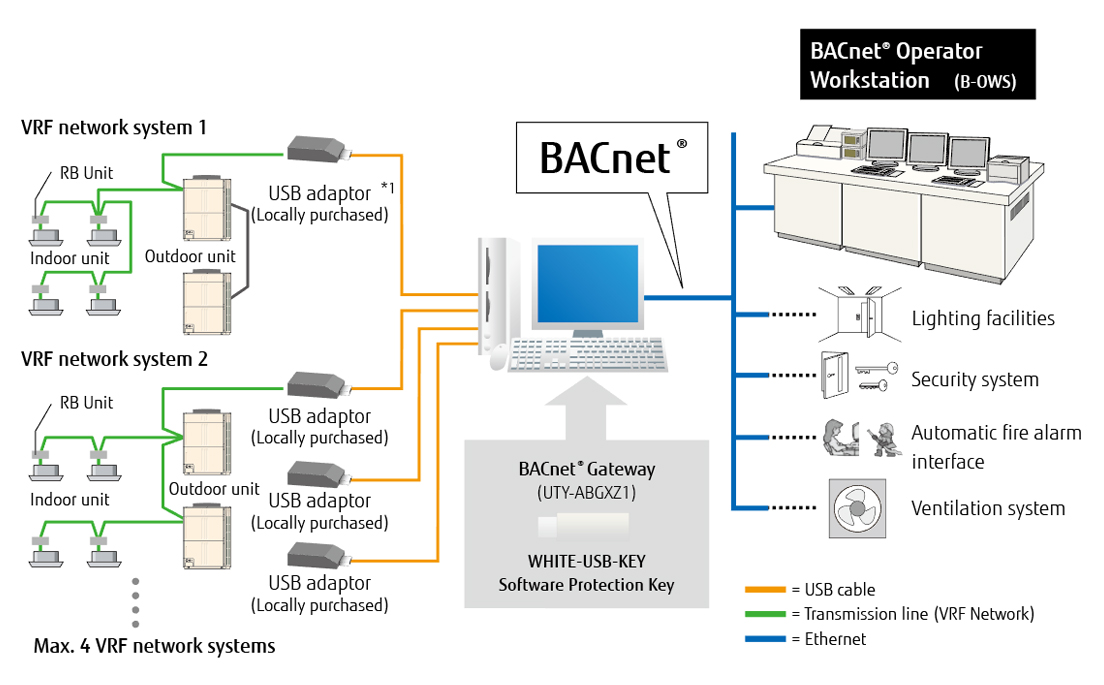

Installation example
![](/shared/eu/img-0000-vrf-uty-abgxz1-installation-example-01.jpg)
- *1.
- U10 USB network interface available from Echelon® Corporation – TP/FT-10 Channel (Model number: 75010R) (required for each VRF Network)
Computer requirements
UTY-ABGXZ1
Operating system
- Microsoft® Windows® 7 Home Premium (32-bit or 64-bit) SP1, Windows® 7 Professional (32-bit or 64-bit) SP1
- Microsoft® Windows® 8.1 (32-bit or 64-bit), Windows® 8.1 Pro (32-bit or 64-bit)
- Microsoft® Windows® 10 Home (32-bit or 64-bit), Windows® 10 Pro (32-bit or 64-bit)
- Supports 7 languages:
- Chinese, English, French, German, Polish, Russian, and Spanish
CPU
Intel® Core™ i3 2 GHz or higher
Memory
- 2 GB or more (for Windows® 7 [32-bit])
- 4 GB or more (for Windows® 7 [64-bit], Windows® 8.1, and Windows® 10)
HDD
40 GB or more of free space
Screen resolution
1024 x 768 pixels or higher
Interface
- Ethernet port (for access to the Internet using LAN)
- Up to 5 USB ports*2
- *2
- 1 USB port required to connect to White-USB-key/WibuKey
- Up to 4 USB ports required to connect to a Echelon® U10 USB network interface
- *
- The maximum number of required USB ports varies depending on the applicable system configuration.
Software
Adobe® Reader® 9.0 or later
Packing list
- White-USB-key × 1
- Includes the software, user's manual, and license for BACnet® Gateway.
