ASHA18GBCH
5.6 kW
6.3 kW
Specifications
| Power Source | Phase | Single phase | |
|---|---|---|---|
| Voltage | 230 V | ||
| Frequency | 50 Hz | ||
| Capacity | Cooling | 5.6 kW | |
| Heating | 6.3 kW | ||
| Input Power | 32 W | ||
| Airflow Rate | Cooling | High | 840 m³/h |
| Middle | 770 m³/h | ||
| Low | 690 m³/h | ||
| Heating | High | 840 m³/h | |
| Middle | 770 m³/h | ||
| Low | 690 m³/h | ||
| Sound Pressure Level*2 | Cooling | High | 41 dB(A) |
| Middle | 39 dB(A) | ||
| Low | 35 dB(A) | ||
| Heating | High | 41 dB(A) | |
| Middle | 39 dB(A) | ||
| Low | 35 dB(A) | ||
| Net Dimensions | Height | 320 mm | |
| Width | 998 mm | ||
| Depth | 238 mm | ||
| Net Weight | 15.0 kg | ||
| Connection Pipe Diameter | Liquid (Flare) | φ6.35 mm | |
| Gas (Flare) | φ12.7 mm | ||
| Drain Hose Diameter | φ12(I.D.), φ16(O.D.) mm | ||
| EV Kit (optional) | EV Kit (optional) | ||
Scroll

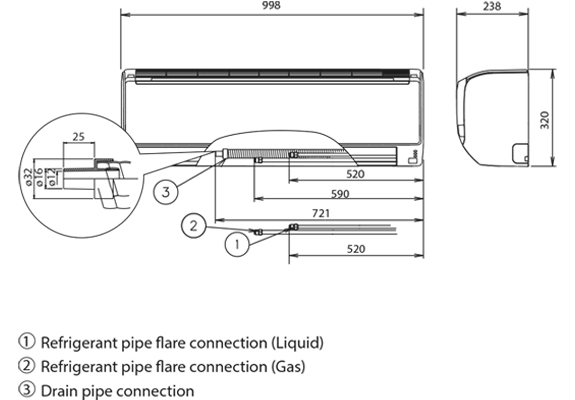

Dimensions
Indoor Unit : ASHA18GBCH
