Central Remote Controller UTY-DCGGZ2

Controller

Max. number of controllable units :
100 indoor units
Max. number of controllable groups :
50 groups
Download :
Catalogues

Features

For small and medium-size buildings and commercial spaces

  • Individual control and monitoring of up to 100 indoor units
  • 7-inch, easy-to-read TFT color LCD screen
  • Visually intuitive operation
  • Supports 12 languages: Chinese, Dutch, English, French, German, Greek, Italian, Polish, Portuguese, Russian, Spanish, and Turkish

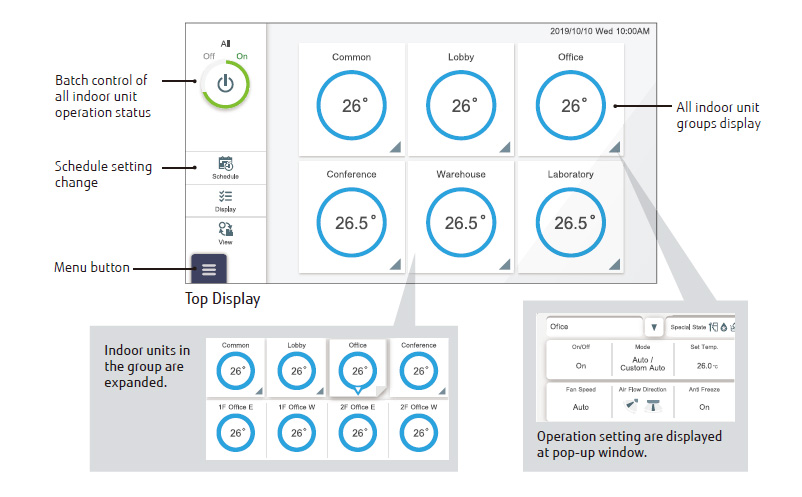

Easy operation

This Central Remote Controller provides an intuitive user interface with a touch screen display.

All primary functions can be accessed from the top screen, and subsequent control options are shown in a pop-up window.

Troubleshooting assistance

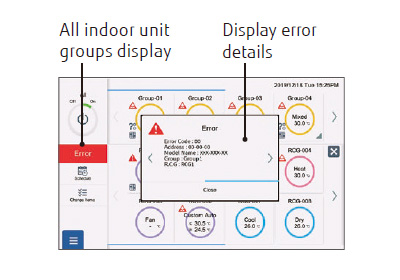

Error details

Details of an error are shown on the display.

Monitoring of sensor data
Monitors sensor data from indoor and outdoor units and forwards them to a service technician via e-mail.
Notification of room temperature
Alerts by e-mail when the temperature near the air conditioner becomes too high or low.

Remote monitoring and operation

The Central Remote Controller enables monitoring and control of a tenant's air conditioners anytime, anywhere.

Examples:

  • Monitoring and control of Fujitsu General air conditioners
  • E-mail notification of errors

Specifications

Model Name UTY-DCGGZ2
Power Supply 50/60 Hz 100 to 240 V
Net Dimensions Height 134.6 mm
Width 216.2 mm
Depth 37.9 mm
Net Weight 800 g
