ABHA054GTEH

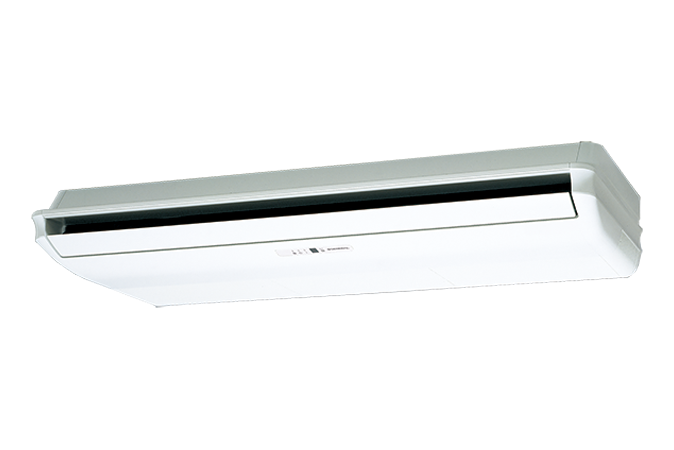

Indoor unit

Indoor Unit :
ABHA054GTEH
Download :
Catalogues

Capacity

Cooling   14.0 kW
Heating   16.0 kW


Specifications

Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 14.0 kW
Heating 16.0 kW
Input Power 180 W
Airflow Rate Cooling High 2270 m³/h
Medium High 2070 m³/h
Middle 1860 m³/h
Low High 1660 m³/h
Low 1470 m³/h
Quiet 1280 m³/h
Heating High 2270 m³/h
Medium High 2070 m³/h
Middle 1860 m³/h
Low High 1660 m³/h
Low 1470 m³/h
Quiet 1280 m³/h
Sound Pressure Level*2 Cooling High 51 dB(A)
Medium High 49 dB(A)
Middle 46 dB(A)
Low High 43 dB(A)
Low 40 dB(A)
Quiet 36 dB(A)
Heating High 51 dB(A)
Medium High 49 dB(A)
Middle 46 dB(A)
Low High 43 dB(A)
Low 40 dB(A)
Quiet 36 dB(A)
Net Dimensions Height 240 mm
Width 1660 mm
Depth 700 mm
Net Weight 48.0 kg
Connection Pipe Diameter Liquid (Flare) φ9.52 mm
Gas (Flare) φ15.88 mm
Drain Hose Diameter φ25(I.D.), φ32(O.D.) mm
EV Kit (optional) EV Kit (optional)
Scroll

Dimensions

Indoor Unit : ABHA054GTEH

Indoor unit
