KNX® Interface FG-RC-KNX1Z1

Adapters & Converters

Download :
Catalogues

Features

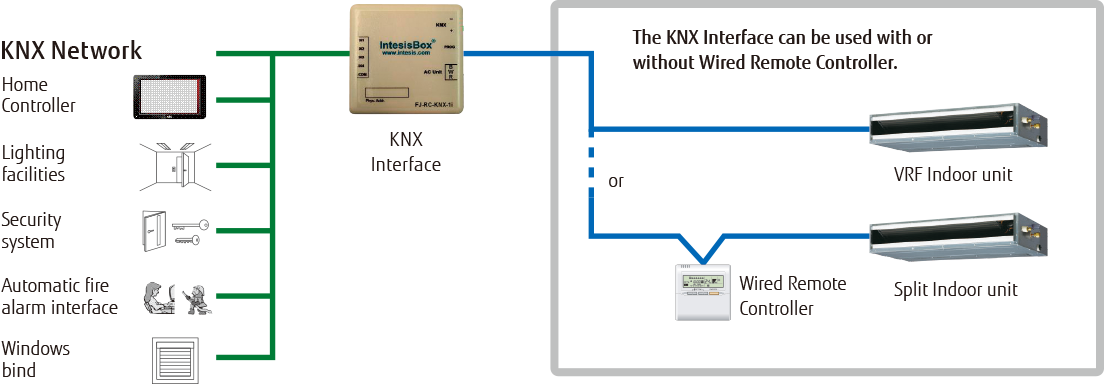

The KNX Interface enables air conditioners to be fully integrated into a KNX network system.

  • Its compact size makes it easy to install.
  • No separate external power supply required (only KNX bus power required)
  • Can be used for a single indoor unit or up to 16 group-controlled indoor units.

Specifications

Model Name FG-RC-KNX1Z1
Net Dimensions Height 70 mm
Width 70 mm
Depth 28 mm
Net Weight 70 g
