Network Converter for single-split type UTY-VTGX (DC power supply type)

Adapters & Converters

Max. number of controllable units :
16 indoor units
Max. number of controllable converters :
100 Network Converters
Download :
Catalogues

Features

  • A network converter is required when connecting a single-split system to a VRF network system.
  • Compact and lightweight design
  • Connectable to both 2-wire and 3-wire remote controllers

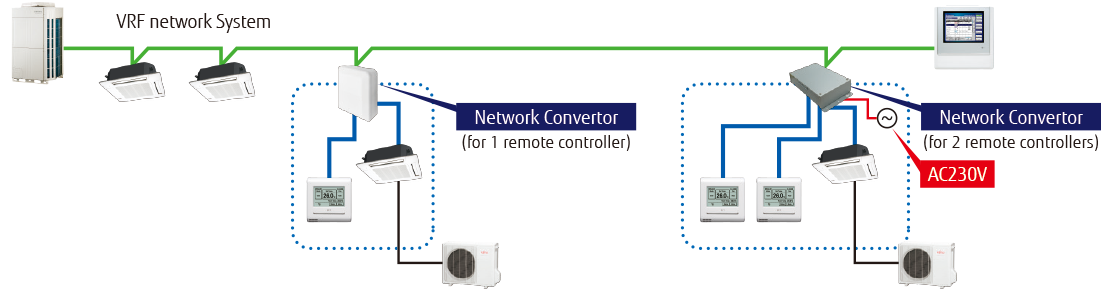

Installation example.

The 1-remote-controller type and the 2-remote-controller type are available.

Power supply (220-240 V AC, 50/60 Hz) is required for the 2-remote-controller type.

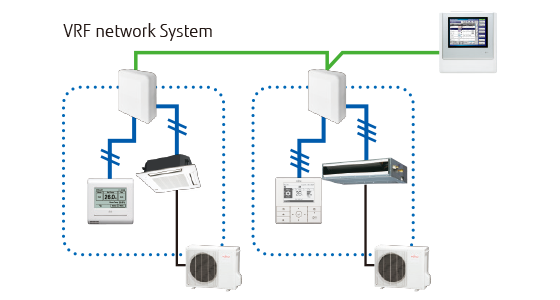

Both 2-wire and 3-wire type wired remote controllers can be connected.

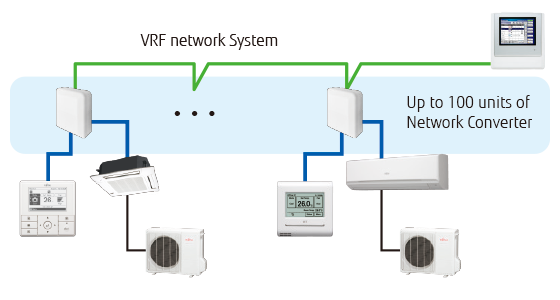

Central control can be provided for single split systems. (Up to 100 Network Converters can be connected in a VRF network system)

Specifications

Model Name UTY-VTGX (DC power supply type)
Power Supply polar 3-wire 12 V DC/non-polar 2-wire 12 V DC
Net Dimensions Height 140 mm
Width 117 mm
Depth 43 mm
Net Weight 250 g
Input Power Max. 1.2 W
