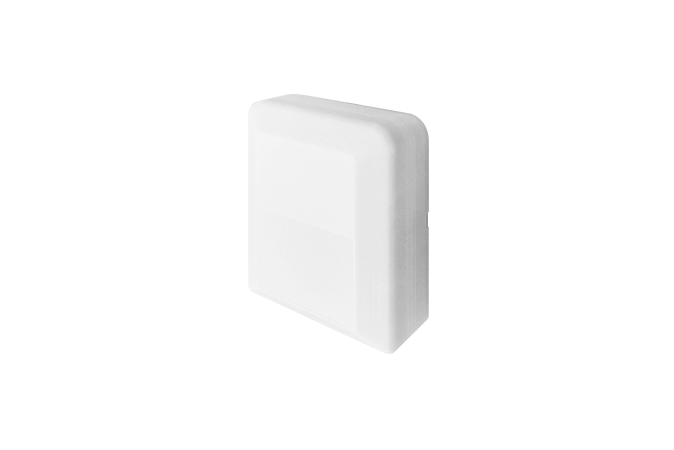

MODBUS® Converter UTY-VMSX

Max. number of connectable units :
1 single-split indoor unit

Features

MODBUS® converter enables air conditioners to be fully integrated into a MODBUS® network.

  • Simple installation due to small and compact size.
  • No separate external power supply required.
  • The MODBUS® converter must be connected to an indoor unit on a one-to-one basis.

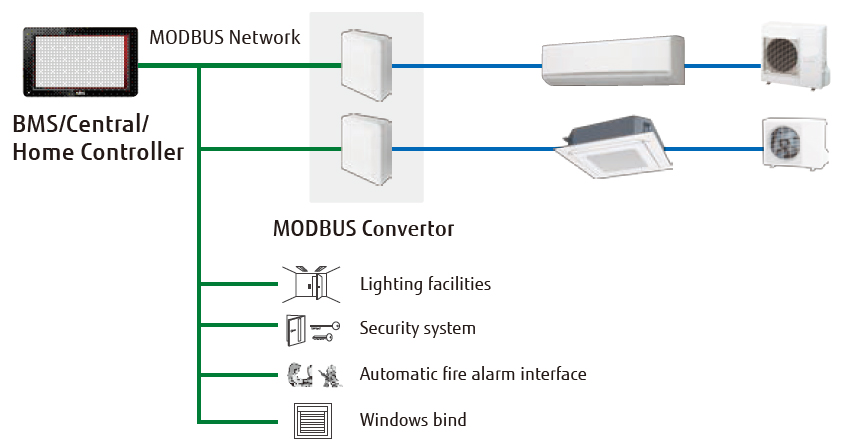

  • The MODBUS® converter enables central monitoring and control of air conditioners from BMS, central, or home controller.

Specifications

Model Name UTY-VMSX
Power Supply 12 V DC
Net Dimensions Height 140 mm
Width 117 mm
Depth 43 mm
Net Weight 200 g
Power Consumption Max. 1.2 W
