ARXC060GTEH
18.0 kW
20.0 kW
Specifications
| Power Source | Phase | Single phase | |
|---|---|---|---|
| Voltage | 230 V | ||
| Frequency | 50 Hz | ||
| Capacity | Cooling | 18.0 kW | |
| Heating | 20.0 kW | ||
| Input Power | 730 W | ||
| Airflow Rate | Cooling | High | 3500 m³/h |
| Middle | 3000 m³/h | ||
| Low | 2460 m³/h | ||
| Heating | High | 3500 m³/h | |
| Middle | 3000 m³/h | ||
| Low | 2460 m³/h | ||
| Static Pressure Range | 100 to 250 Pa | ||
| Standard Static Pressure | 100 Pa | ||
| Sound Pressure Level*2 | Cooling | High | 49 dB(A) |
| Middle | 45 dB(A) | ||
| Low | 42 dB(A) | ||
| Heating | High | 49 dB(A) | |
| Middle | 45 dB(A) | ||
| Low | 42 dB(A) | ||
| Net Dimensions | Height | 400 mm | |
| Width | 1050 mm | ||
| Depth | 500 mm | ||
| Net Weight | 46.0 kg | ||
| Connection Pipe Diameter | Liquid (Flare) | φ9.52 mm | |
| Gas (Flare) | φ15.88 mm | ||
| Drain Hose Diameter | φ25(I.D.), φ32(O.D.) mm | ||
| EV Kit (optional) | EV Kit (optional) | ||
Scroll
Dimensions

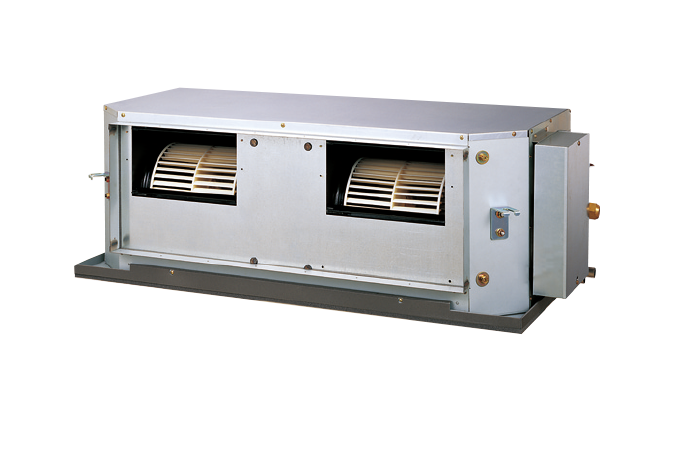

Indoor Unit : ARXC060GTEH
