MODBUS® Converter UTY-VMGX
- Max. number of connectable converters :
- 9 units per VRF network
- Max. number of controllable units :
- 100 outdoor units
- Max. number of selectable units :
- 128 indoor units
- Download :
-
Catalogues
Features

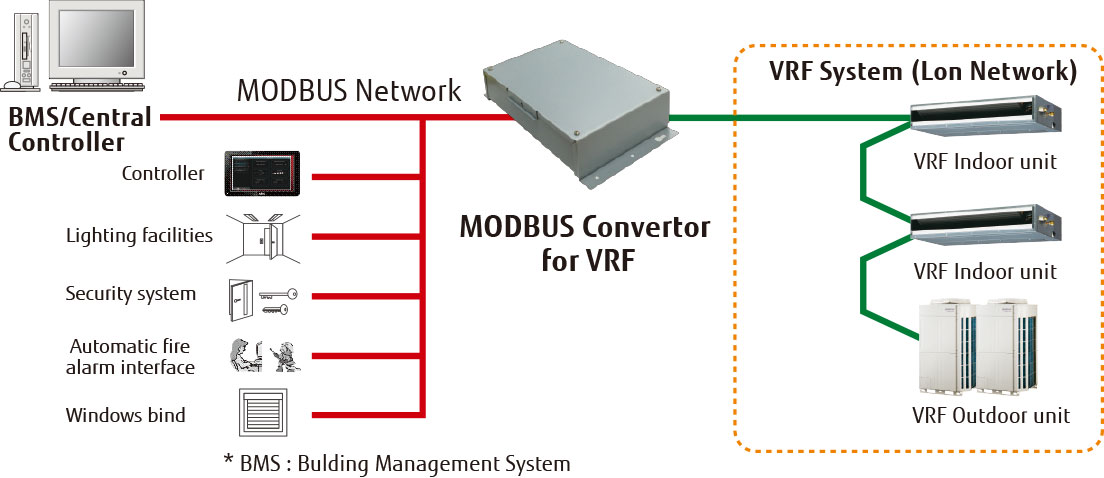

The MODBUS® Converter allows for complete integration of air conditioners into a MODBUS® network.
- Compact and lightweight design
- Direct connection to a MODBUS® network
- Up to 128 indoor units can be controlled by a single MODBUS® Converter.
- The MODBUS® Converter enables central monitoring and control of air conditioners from BMS or a central controller.
Up to 9 converters connectable
Up to 9 converters can be connected to a VRF network. Simultaneous control, such as Power On/Off and temperature setting, can be performed for each zone.

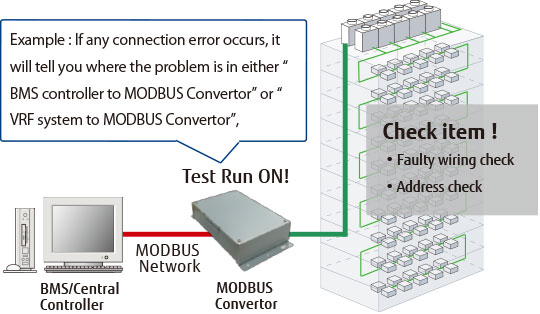

Tracing the source of a connection error
If a connection error occurs after installation work is completed, the source of the error can be located easily.
Specifications
| Model Name | UTY-VMGX | |
|---|---|---|
| Power Supply | Voltage | 220 ~ 240 V |
| Frequency | 50/60 Hz | |
| Net Dimensions | Height | 54 mm |
| Width | 260 mm | |
| Depth | 150 mm | |
| Net Weight | 1,100 g | |
| Input Power | Max. 2 W | |
