ASHA24GBCH
7.1 kW
8.0 kW
Specifications
| Power Source | Phase | Single phase | |
|---|---|---|---|
| Voltage | 230 V | ||
| Frequency | 50 Hz | ||
| Capacity | Cooling | 7.1 kW | |
| Heating | 8.0 kW | ||
| Input Power | 60 W | ||
| Airflow Rate | Cooling | High | 1100 m³/h |
| Middle | 910 m³/h | ||
| Low | 730 m³/h | ||
| Heating | High | 1100 m³/h | |
| Middle | 910 m³/h | ||
| Low | 730 m³/h | ||
| Sound Pressure Level*2 | Cooling | High | 48 dB(A) |
| Middle | 43 dB(A) | ||
| Low | 35 dB(A) | ||
| Heating | High | 48 dB(A) | |
| Middle | 43 dB(A) | ||
| Low | 35 dB(A) | ||
| Net Dimensions | Height | 320 mm | |
| Width | 998 mm | ||
| Depth | 238 mm | ||
| Net Weight | 15.0 kg | ||
| Connection Pipe Diameter | Liquid (Flare) | φ9.52 mm | |
| Gas (Flare) | φ15.88 mm | ||
| Drain Hose Diameter | φ12(I.D.), φ16(O.D.) mm | ||
| EV Kit (optional) | EV Kit (optional) | ||
Scroll
Dimensions

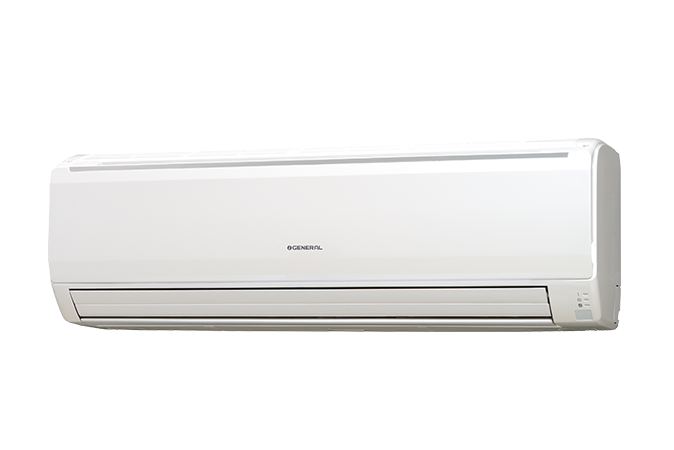

Indoor Unit : ASHA24GBCH
