Features

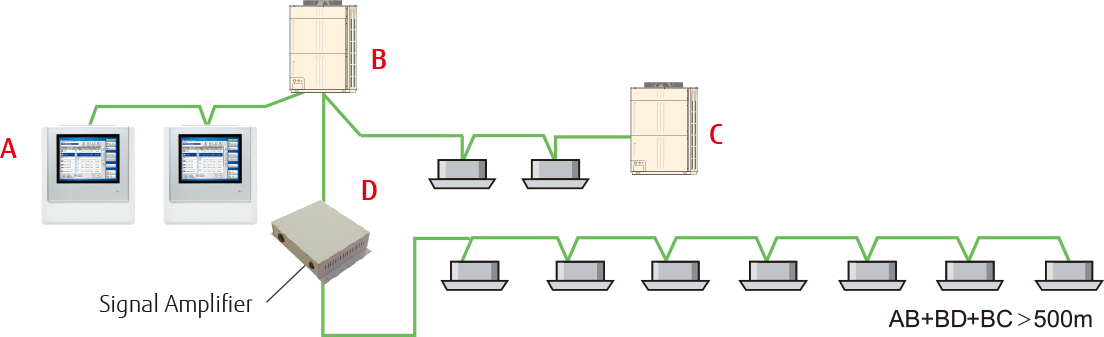

(1) When the total wiring length of the transmission line exceeds 500 m or
(2) When the number of units on the transmission line exceeds 64,
- A Signal Amplifier is required.
- The transmission line can be extended up to 3,600 m using multiple Signal Amplifiers.
- Up to 8 Signal Amplifiers can be added in a VRF network system.
Specifications
| Model Name | UTY-VSGXZ1 | |
|---|---|---|
| Power Supply | Phase | Single phase |
| Voltage | 208 ~ 240 V | |
| Frequency | 50/60 Hz | |
| Net Dimensions | Height | 67 mm |
| Width | 288 mm | |
| Depth | 211 mm | |
| Net Weight | 1,500 g | |
| Power Consumption | 4.5 W | |
