Multi-split Systems R32 2-unit Multi-split Type AOHG18KBTA2
Features
- Outstanding energy-saving performance
- A variety of models to choose from
- Equipped with the new R32 refrigerant
Capacity
5.0 kW
5.6 kW
* For information about the features of connectable indoor units, click "Download" at the bottom of the page to obtain a catalogue.
Specifications
| Power Source | Phase | Single-phase |
|---|---|---|
| Voltage | ~ 230 V | |
| Frequency | 50 Hz | |
| Capacity | Cooling | 5.0 kW(1.7 - 5.8 kW) | Heating | 5.6 kW(1.8 - 7.0 kW) |
| EER | Cooling | 4.03 W |
| COP | Heating | 4.59 W |
| Sound Pressure Level*2 (High) | Cooling | 47 dB(A) |
| Heating | 50 dB(A) | |
| Sound Power Level (High) | Cooling | 60 dB(A) |
| Heating | 62 dB(A) | |
| Net Dimensions | Height | 632 mm |
| Width | 799 mm | |
| Depth | 290 mm | |
| Net Weight | 37 kg | |
| 82 lbs | ||
| Connection Pipe Diameter | Liquid | Φ6.35×2 mm |
| Gas | Φ9.53×2 mm | |
| Max. Pipe Length | Total | 30 m |
| Each | 20 m | |
| Max. Height Difference | Between Outdoor Unit and Each Indoor Unit | 15 m |
| Between Indoor Units | 10 m | |
| Operation Range | Cooling | 0 to 46 °C DB |
| Heating | -10 to 46 °C DB | |
| Refrigerant | Type | R32 |
| Global Warming Potential | 675 | |
| Charge | 1.02 (0.689) g | |
Scroll
Dimensions

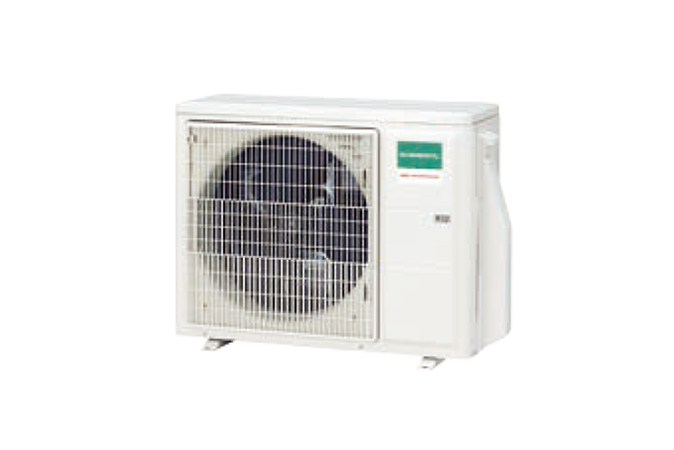

Outdoor Unit : AOHG18KBTA2
