Floor AGHG14KVCA

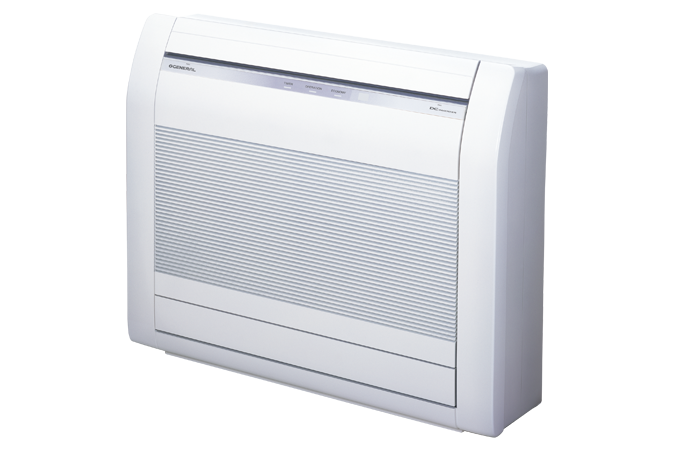

Indoor Unit

Indoor Unit :
AGHG14KVCA

Feature Icons

Economy operation: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Powerful heating: Maintains the rated heating capacity even when the outdoor temperature drops to -7°C. 10ºC heating operation: The room temperature can be set to not go below 10°C so that the room will not become too cold when unoccupied. Low noise mode: Reduces the noise level of an outdoor unit. Wireless LAN control: The optional WLAN adapter enables the air conditioner to be operated by smartphone or tablet PC from outside the home. Wireless LAN control: The optional WLAN adapter enables the air conditioner to be operated by smartphone or tablet PC from outside the home. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Vertical swing louver: The louver automatically swings up and down. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep. Program timer: This digital timer allows selection of one of four options: ON, OFF, ON » OFF, or OFF » ON. Weekly timer: Different ON-OFF times can be set for each day. Filter sign: Indicates the filter cleaning period by blinking. Ion deodorization filter: The filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by an ultra-fine-particle ceramic. Apple-catechin filter: The Apple-catechin filter uses static electricity to clean fine particles and dust from the air.

Options

Setting temperature range limitation: Sets the minimum and maximum limits on room temperature to establish the right balance between energy saving and a comfortable environment. Set temperature auto return: The setting temperature automatically returns to the previously set temperature. Auto-off timer: Automatically stops operation when a fixed time has elapsed from the start of operation. External error output External ON/OFF input Special Cooling: Special Cooling Wireless LAN control: The optional WLAN adapter enables the air conditioner to be operated by smartphone or tablet PC from outside the home. Ion deodorization filter: The filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by an ultra-fine-particle ceramic.

Specifications

kW Class 4.0 kW
Power Source Phase Single phase
Voltage ~ 230 V
Frequency 50 Hz
Sound Pressure Level*2
(High/Middle/Low/Quiet)		 Cooling 44 / 38 / 31 / 22 dB(A)
Heating 44 / 39 / 33 / 22 dB(A)
Sound Power Level
(High)		 Cooling 56 dB(A)
Heating 56 dB(A)
Airflow Rate
(High/Middle/Low/Quiet)		 Cooling 650 / 520 / 400 / 270 m³/h
Heating 650 / 540 / 430 / 270 m³/h
Net Dimensions Height 600 mm
Width 740 mm
Depth 200 mm
Net Weight 14 kg
31 lbs
Connection Pipe Diameter Liquid 6.35 mm
Gas 9.52 mm
