Mini duct ARXG07KSLAP

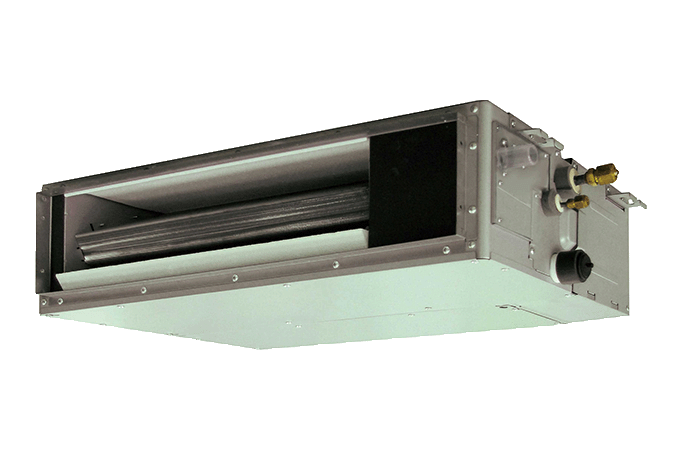

Indoor Unit

Indoor Unit :
ARXG07KSLAP

Feature Icons

Economy operation: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Set temperature auto return: The setting temperature automatically returns to the previously set temperature. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Connectable fresh air duct: Outside air can be introduced by attaching a locally purchased duct to the fresh air knockout and an optional part. Connectable distributing duct: Locally purchased branch ducts can be attached to the systems to distribute the airflow. Auto-off timer: Automatically stops operation when a fixed time has elapsed from the start of operation. Weekly timer: Different ON-OFF times can be set for each day. Weekly & Temperature setback timer: Weekly & Temperature setback timer can set the temperature for 2-time spans and for each day of the week. Filter sign: Indicates the filter cleaning period by blinking. External ON/OFF input Special Cooling: Special Cooling

Options

Setting temperature range limitation: Sets the minimum and maximum limits on room temperature to establish the right balance between energy saving and a comfortable environment. 10ºC heating operation: The room temperature can be set to not go below 10°C so that the room will not become too cold when unoccupied. Fresh air intake: Fresh air can be taken in by a fan connected to an external control unit. Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep. Program timer: This digital timer allows selection of one of four options: ON, OFF, ON » OFF, or OFF » ON. Wireless LAN control: The optional WLAN adapter enables the air conditioner to be operated by smartphone or tablet PC from outside the home. Ion deodorization filter: The filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by an ultra-fine-particle ceramic. Drain pump equipped as standard

Specifications

kW Class 2.0 kW
Power Source Phase Single phase
Voltage ~ 230 V
Frequency 50 Hz
Sound Pressure Level*2
(High/Middle/Low/Quiet)		 Cooling 29 / 26 / 24 / 23 dB(A)
Heating 29 / 26 / 24 / 23 dB(A)
Sound Power Level
(High)		 Cooling 52 dB(A)
Heating 53 dB(A)
Airflow Rate
(High/Middle/Low/Quiet)		 Cooling 550 / 440 / 390 / 360 m³/h
Heating 550 / 440 / 390 / 360 m³/h
Net Dimensions Height 198 mm
Width 700 mm
Depth 450 mm
Net Weight 15.5 kg
34 lbs
Connection Pipe Diameter Liquid 6.35 mm
Gas 9.52 mm
External Static Pressure 0 to 30
Drain Pump Standard
Scroll

Optional Parts

Wired Remote Controller
Controller
UTY-RVRG
Compact Wired Remote Controller
Controller
UTY-RCRGZ1
Wired Remote Controller with Touch Panel
Controller
UTY-RNRGZ3
Wired Remote Controller
Controller
UTY-RLRG
Simple Remote Controller
UTY-RSRG
Simple Remote Controller
UTY-RHRG (Without operation mode)
Wired Remote Controller
UTY-RVNGM
Wired Remote Controller
UTY-RNNGM
Simple Remote Controller
UTY-RSNGM
Central Remote Controller
UTY-DMMGM
Wireless LAN Adapter
UTY-TFSXJ3
UTY-TFSXJ3
Wireless LAN Adapter
UTY-TFNXZ1
Wireless LAN Adapter
FJ-RC-WIFI-1
KNX® Interface
FJ-RC-KNX-1i
Modbus Interface
FJ-RC-MBS-1
external connect kits
UTY-XWZX
