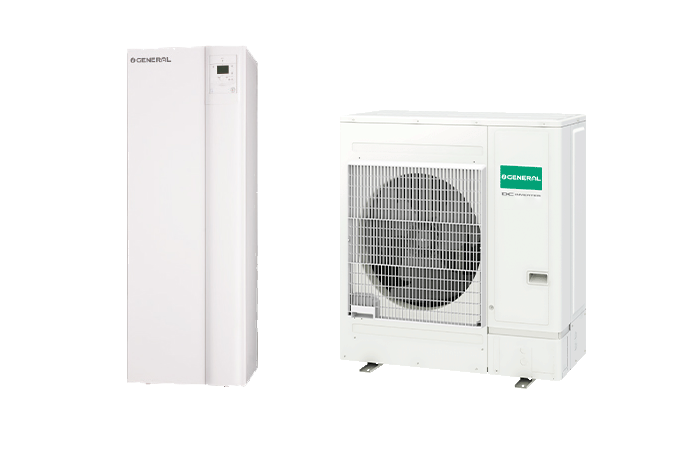

Split DHW Integrated Type Comfort Series R32 WGHA100ML3 / WOHA100KLT
Specifications
| Capacity Range | 10 | |
|---|---|---|
| 7°C/35°C floor heating *1 | Heating Capacity | 9.50 kW |
| Input Power | 2.11 kW | |
| COP | 4.5 | |
| 2°C/35°C floor heating *1 | Heating Capacity | 9.30 kW |
| Input Power | 3.08 kW | |
| COP | 3.02 | |
| -7°C/35°C floor heating *1 | Heating Capacity | 8.90 kW |
| Input Power | 3.36 kW | |
| COP | 2.65 | |
Scroll
Space Heating Characteristics *2
| Temperature Application | 55 °C | 35 °C | |
|---|---|---|---|
| Energy Efficiency Class | A++ | A+++ | |
| Rated Heat Output | 8 kW | 9 kW | |
| Seasonal Space Heating Energy Efficiency (ηs) | 130 % | 178 % | |
| Annual Energy Consumption | 5,083 kWh | 3,875 kWh | |
| Sound Power Level | Hydraulic Indoor Unit | 40 dB(A) | |
| Outdoor Unit | 62 dB(A) | ||
Scroll
Domestic Hot Water Characteristics *2
| Load Profile | L |
|---|---|
| Energy Efficiency Class | A+ |
| Energy Efficiency (ηwh) | 130 % |
| Annual Energy Consumption | 793 kWh |
Scroll
Hydraulic Indoor Unit Specifications
| Power Source | Phase | 1 ø |
|---|---|---|
| Voltage | 230 V | |
| Frequency | 50 Hz | |
| Net Dimensions | Height | 1,863 mm |
| Width | 648 mm | |
| Depth | 700 mm | |
| Net Weight | 145 kg | |
| Water Circulation | Min./Max. | 13.2 / 30.0 L/min |
| DHW Capacity | 190 L | |
| Hot Water Heater Capacity | 1.5 kW | |
| Buffer Tank Capacity | 16 L | |
| Expansion Vessel Capacity | 8 L | |
| Leaving Water Temperature Range | Max. | 55 °C |
| Water Pipe Connection Diameter | Flow | Ø 25.4 mm |
| Return | Ø 25.4 mm | |
| Backup Heater | Capacity | 3.0 ( ) kW |
Scroll
Outdoor Unit Specifications
| Power Source | Phase | 1 ø |
|---|---|---|
| Voltage | 230 V | |
| Frequency | 50 Hz | |
| Current | Max. | 19.0 A |
| Net Dimensions | Height | 998 mm |
| Width | 940 mm | |
| Depth | 320 mm | |
| Net Weight | 62 kg | |
| Refrigerant (Global Warming Potential) | R32 (675) | |
| Refrigerant Charge | 1.63 kg | |
| Additional Refrigerant Charge | 20 g/m | |
| Connection Pipe Diameter | Liquid | Ø 9.52 mm |
| Gas | Ø 15.88 mm | |
| Pipe Length | Min./Max. | 3 / 30 m |
| Pre Charge | 20 m | |
| Height Difference | Max. | - 20 m |
| Operation Range | Heating | -20 to 35 °C |
Scroll
Dimensions

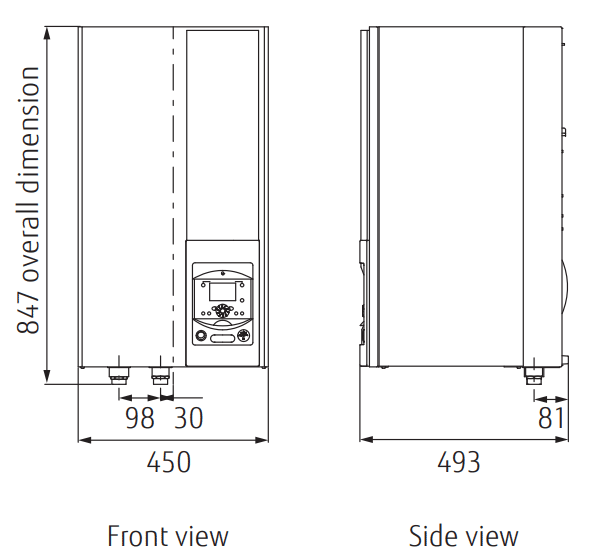

Hydraulic Unit : WGHA100ML3

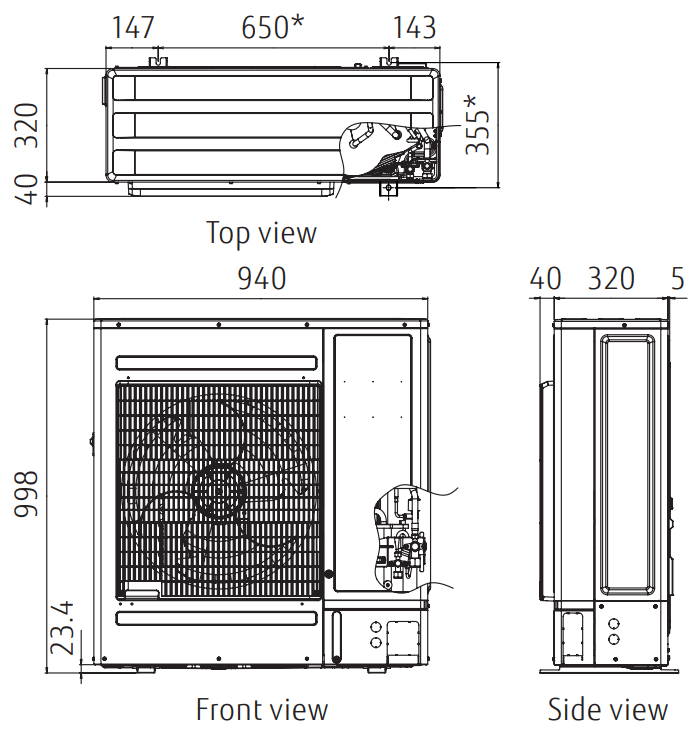

Outdoor Unit : WOHA100KLT
Optional Parts
- Second Circuit Kit
- UTW-KZDXE
- Boiler Connection Kit
- UTW-KBDXD
- Balancing Vessel
- UTW-TEVXA
- Swimming Pool Kit
- UTW-KSPXD
- Heat Exchanger for Swimming Pool Kit
- UTW-ESPXA
- Regulation Extension Kit
- UTW-KREXD
- Cooling Kit
- UTW-KCLXD
- Drain Pan
- UTW-KDPXB
- Cascade Secondary Kit (LPB Clip included)
- UTW-KCSXE
- Cascade Primary Kit (LPB Clip included)
- UTW-KCMXE
- HMI Kit
- UTW-KHMXE
- Remote Controller
- UTW-C74TXF
- Remote Controller
- UTW-C74HXF
- Remote Controller
- UTW-C78XD
- Remote Controller
- UTW-C78XD-E
- Room Thermostat
- UTW-C55XA
- Room Thermostat
- UTW-C58XD
- Outdoor Sensor Transmitter
- UTW-MOSXD
- RF Module
- UTW-MRCXD
- Web Server
- UTW-KW1XD
- Web Server
- UTW-KW4XD
- LPB Clip
- UTW-KL1XD
- MODBUS® Clip
- UTW-KMBXE
- Base Heater
- UTW-HAMXE
- Base Heater
- UTW-HAMXF
- Service Tool (OCI700 Adapter included)
- UTW-KSTXD
- Service Tool Software
- UTW-KPSXD
- Back-up Heater kit
- UTW-KBHXL
- UTW-KDWXD (External),UTW-T20XA UTW-T30XA,UTW-T30XD :
- DHW operation is possible without DHW Kit and DHW Tank.
- UTW-KHMXE,UTW-C74TXF,UTW-C74HXF :
- 19 Languages included,no separate Estern European RC necessary. C74TXF: Built in Room Temperature sensor C74HXF: Built in Room temperature and Humidity sensor
- UTW-C78XD-E :
- Eastern European Language(English, Czech Republic, Slovakia, Poland, Turkey, Hungary, Russia, Slovenia, Greece, Serbia)
- UTW-KSTXD :
- UTW-KL1XD is required for the connection.
- UTW-KPSXD :
- UTW-KW1XD or UTW-KW4XD is required for the connection.
- UTW-KMBXE :
- Additional optional part necessary
