Split Type Comfort Series R32 WSHA050ML3 / WOHA060KLT

Hydraulic unit and Outdoor unit

Hydraulic Unit :
WSHA050ML3
Outdoor Unit :
WOHA060KLT
Download :
Catalogues

Features

  • High leaving water temperature
  • High COP

Specifications

Capacity Range 5
7°C/35°C floor heating *1 Heating Capacity 4.50 kW
Input Power 0.949 kW
COP 4.74
2°C/35°C floor heating *1 Heating Capacity 4.50 kW
Input Power 1.33 kW
COP 3.39
-7°C/35°C floor heating *1 Heating Capacity 4.40 kW
Input Power 1.59 kW
COP 2.76
Scroll

Space Heating Characteristics *2

Temperature Application 55 °C 35 °C
Energy Efficiency Class A++ A+++
Rated Heat Output 5 kW 5 kW
Seasonal Space Heating Energy Efficiency (ηs) 125 % 175 %
Annual Energy Consumption 3,035 kWh 2,322 kWh
Sound Power Level Hydraulic Indoor Unit 40 dB(A)
Outdoor Unit 57 dB(A)
Scroll

Hydraulic Indoor Unit Specifications

Power Source Phase 1 ø
Voltage 230 V
Frequency 50 Hz
Net Dimensions Height 847 mm
Width 450 mm
Depth 493 mm
Net Weight 41 kg
Water Circulation Min./Max. 7.6 / 22.0 L/min
Buffer Tank Capacity 16 L
Expansion Vessel Capacity 8 L
Leaving Water Temperature Range Max. 55 °C
Water Pipe Connection Diameter Flow Ø 25.4 mm
Return Ø 25.4 mm
Backup Heater Capacity 3.0 ( ) kW
Scroll

Outdoor Unit Specifications

Power Source Phase 1 ø
Voltage 230 V
Frequency 50 Hz
Current Max. 13.0 A
Net Dimensions Height 632 mm
Width 799 mm
Depth 290 mm
Net Weight 39 kg
Refrigerant (Global Warming Potential) R32 (675)
Refrigerant Charge 0.97 kg
Additional Refrigerant Charge 25 g/m
Connection Pipe Diameter Liquid Ø 6.35 mm
Gas Ø 12.70 mm
Pipe Length Min./Max. 3 / 30 m
Pre Charge 15 m
Height Difference Max. - 20 m
Operation Range Heating -20 to 35 °C
Scroll
*1:
Heating capacity, input power, and COP are measured using the EN14511 standard. Usage environment, such as operation of the heating equipment, room temperature, and controller adjustments, may cause disparities between practically determined values and these values.
*2:
All information of ErP can be available for downloaded from www.fujitsu-general.com/global/support/downloads/search/

Dimensions

Hydraulic Unit : WSHA050ML3

Hydraulic indoor unit

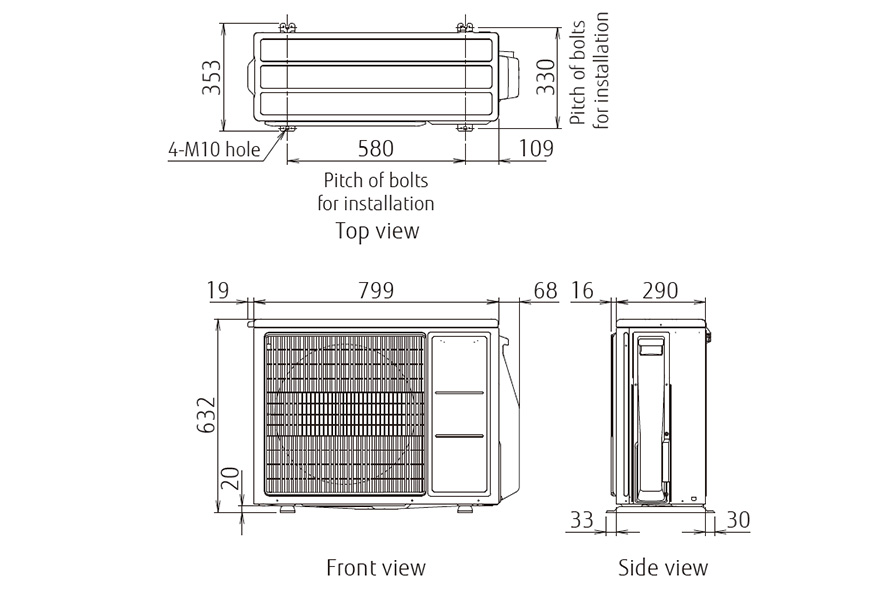

Outdoor Unit : WOHA060KLT

Outdoor unit

Optional Parts

Second Circuit Kit
UTW-KZSXE
Boiler Connection Kit
UTW-KBSXD
Balancing Vessel
UTW-TEVXA
DHW Kit
UTW-KDWXD (External)
DHW Tank
UTW-T20AXH (200 Liter)
DHW Tank
UTW-T30AXH (300 Liter)
DHW Tank
UTW-T40AXH (400 Liter)
DHW Tank
UTW-T20BXH (200 Liter)
DHW Tank
UTW-T30BXH (300 Liter)
DHW Tank
UTW-T40BXH (400 Liter)
Swimming Pool Kit
UTW-KSPXD
Heat Exchanger for Swimming Pool Kit
UTW-ESPXA
Cooling Kit
UTW-KCLXD
Regulation Extension Kit
UTW-KREXD
Drain Pan
UTW-KDPXB
Cascade Primary Kit (LPB Clip included)
UTW-KCMXE
Cascade Secondary Kit (LPB Clip included)
UTW-KCSXE
HMI Kit
UTW-KHMXE
Remote Controller
UTW-C74TXF
Remote Controller
UTW-C74HXF
Remote Controller
UTW-C78XD
Remote Controller
UTW-C78XD-E
Room Thermostat
UTW-C55XA
Room Thermostat
UTW-C58XD
Outdoor Sensor Transmitter
UTW-MOSXD
RF Module
UTW-MRCXD
Web Server
UTW-KW1XD
Web Server
UTW-KW4XD
LPB Clip
UTW-KL1XD
MODBUS® Clip
UTW-KMBXE
Base Heater
UTW-HAMXE
Base Heater
UTW-HAMXF
Service Tool (OCI700 Adapter included)
UTW-KSTXD
Service Tool Software
UTW-KPSXD
external connect kits
UTY-XWZXZ2
Back-up Heater kit
UTW-KBHXL
UTW-KHMXE,UTW-C74TXF,UTW-C74HXF :
19 Languages included,no separate Estern European RC necessary. C74TXF: Built in Room Temperature sensor C74HXF: Built in Room temperature and Humidity sensor
UTW-C78XD-E :
Eastern European Language(English, Czech Republic, Slovakia, Poland, Turkey, Hungary, Russia, Slovenia, Greece, Serbia)
UTW-KSTXD :
UTW-KL1XD is required for the connection.
UTW-KPSXD :
UTW-KW1XD or UTW-KW4XD is required for the connection.
UTW-KMBXE :
Additional optional part necessary
