VRF Systems V-III Series
Features
Common features
- Greater energy efficiency
- Energy-saving functions
- Better comfort
- Design flexibility
- High reliability
- Easy installation
- Easy service and maintenance
Series features
Outdoor unit lineup
| Space-saving combination | Energy-efficient combination | |
|---|---|---|
| 8 HP | AJH072LALBH | |
| 10 HP | AJH090LALBH | |
| 12 HP | AJH108LALBH | |
| 14 HP | AJH126LALBH | |
| 16 HP | AJH144LALBH | AJH144LALBHH |
| 18 HP | AJH162LALBH | AJH162LALBHH |
| 20 HP | AJH180LALBH | AJH180LALBHH |
| 22 HP | AJH198LALBH | |
| 24 HP | AJH216LALBH | AJH216LALBHH |
| 26 HP | AJH234LALBH | AJH234LALBHH |
| 28 HP | AJH252LALBH | AJH252LALBHH |
| 30 HP | AJH270LALBH | AJH270LALBHH |
| 32 HP | AJH288LALBH | AJH288LALBHH |
| 34 HP | AJH306LALBH | AJH306LALBHH |
| 36 HP | AJH324LALBH | AJH324LALBHH |
| 38 HP | AJH342LALBH | AJH342LALBHH |
| 40 HP | AJH360LALBH | AJH360LALBHH |
| 42 HP | AJH378LALBH | AJH378LALBHH |
| 44 HP | AJH396LALBH | AJH396LALBHH |
| 46 HP | AJH414LALBH | AJH414LALBHH |
| 48 HP | AJH432LALBH | |
| 50 HP | AJH450LALBH | |
| 52 HP | AJH468LALBH | |
| 54 HP | AJH486LALBH |
System overview
Excellent energy saving
The all-inverter heat pump provides highly energy-efficient air conditioning for individual cooling and heating operation all year round.
Great design flexibility for placement in any building
Design flexibility meets the diverse installation needs of high-rise buildings for air conditioners, such as rooftop, concentrated installation of outdoor units combined with individual floor installation of indoor units. This flexibility is achieved by large-capacity combination, sufficient connection capacity, and high static pressure design.
Easy installation and maintenance
The flexible communication method and piping connection make installation and maintenance easy even for large systems.
Features
Outstanding efficiency in real-world operating conditions
The use of our proprietary heat exchanger structure and highly efficient DC twin compressors achieves the best-in-class coefficient of performance (COP) in every combination.

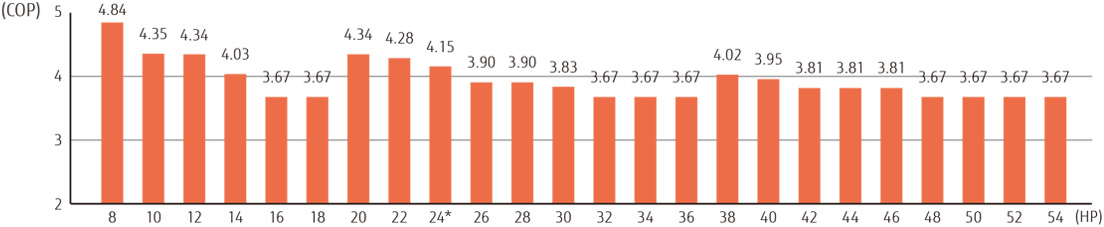

Space-saving combination

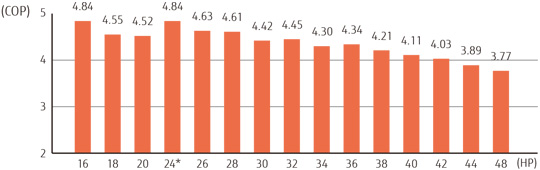

Energy-efficient combination

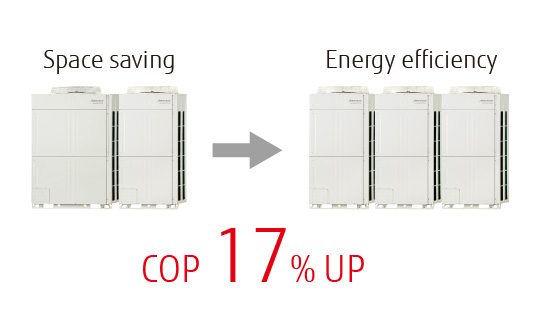

For 24-HP combination
Energy-saving technologies for boosting operational efficiency
Large powerful propeller fan
The fan using CFD*1 technology achieves both high performance and low-noise operation.
- *1.
- CFD: Computational Fluid Dynamics
3-phase DC fan motor
The use of a DC fan motor with sophisticated driver control improves energy efficiency substantially. In addition, this motor operates quietly.
Subcooling heat exchanger
The double-pipe structure with internal projections achieves great heat-exchanging efficiency.
Sine-wave DC inverter control
The use of a motor with an intelligent power module (IPM) reduces switching loss and achieves great efficiency.
High-efficiency, large-capacity DC inverter compressor
A high-efficiency, large-capacity DC twin-rotary compressor offers excellent intermediate capability.
4-face heat exchanger
The 4-face heat exchanger increases the effective surface area and significantly improves heat-exchanging efficiency.
Front slanted-corner air-intake port
When multiple outdoor units are installed, the uniquely shaped front intake improves the airflow into the heat exchanger.
