Features

Series Features

• New intelligent refrigerant control
• External static pressure
• Advanced high efficiency technology
• Slim & Compact Design
• Low noise in consideration for the nearby residents
• Space saving
• Flexible installation
• Efficiency in actual operation
• Long piping length
• Up to 42 units* can be connected
• Top Class Low Operating Sound

Outdoor unit lineup

	400 V 3 phase
8 HP	AJH072LELBH
10 HP	AJH090LELBH
12 HP	AJH108LELBH
14 HP	AJH126LELBH
16 HP	AJH144LELBH
18 HP	AJH162LELBH

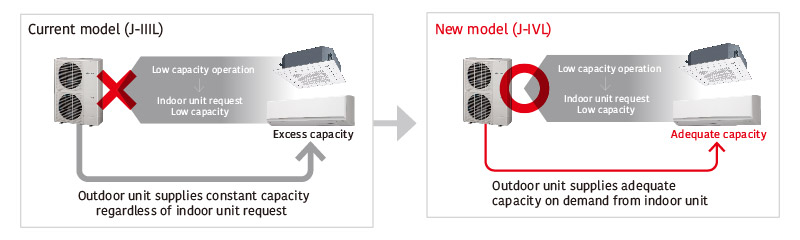

New intelligent refrigerant control

Fujitsu general proposes New outdoor unit which includes New refrigerant control. New refrigerant control can be operated with suitable control corresponding to heat load of the room and can offer a more comfortable space. New refrigerant control can also provide more energy savings.

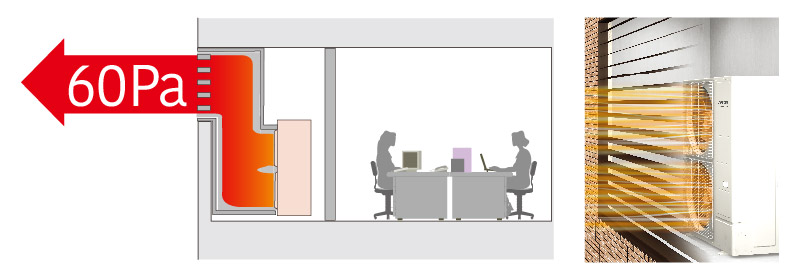

External static pressure

External static pressure is available up to 60Pa for 14/16/18HP. (30Pa for 8/10HP, 40Pa for 12HP)

*

Capacities are slightly decreased for rated values during high static pressure operation.

Advanced high efficiency technology

Large propeller fan

The high efficiency and the low sound operation are mutually realized by reduction of a draft loss which are enabled by the Fujitsu General's original blade design and a large diameter propeller fan.

DC inverter control

Efficiency is improved by mounting of new active filter module.

DC fan motor

Miniaturized, low noise, high efficiency, multi-stage DC fan motor is mounted.

Subcool heat exchanger

Cooling performance is improved by mounting of dual tube heat exchanger.

Large heat exchanger

Heat exchange performance is substantially improved by mounting of 2.6-row large heat exchanger.

Scroll compressor

The equipment of scroll compressor with a wide range of rotational frequency from 15 to 130 rps together with Fujitsu General's unique sensorless sine wave control method which smoothly control the input power run into the motor realized a mutual improvement on the energy efficient operation and the low sound operation.

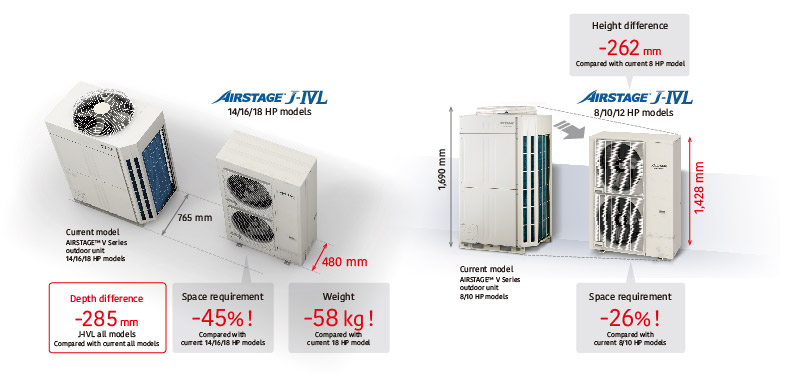

Slim & Compact Design

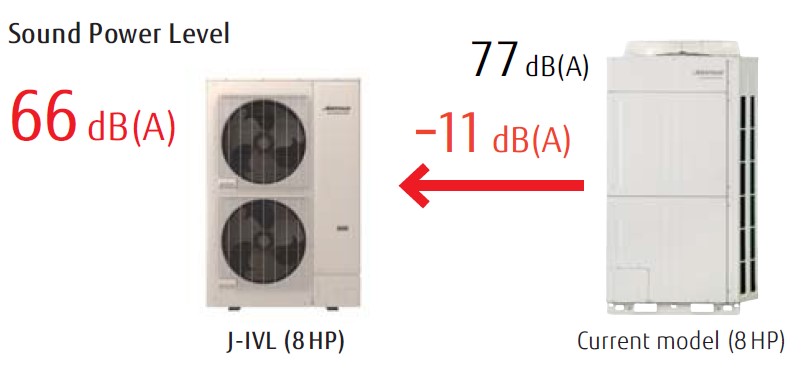

Low noise in consideration for the nearby residents

This model is front air discharge type and about 1000 mm wide, so flexible installation is possible even at narrow in house space.

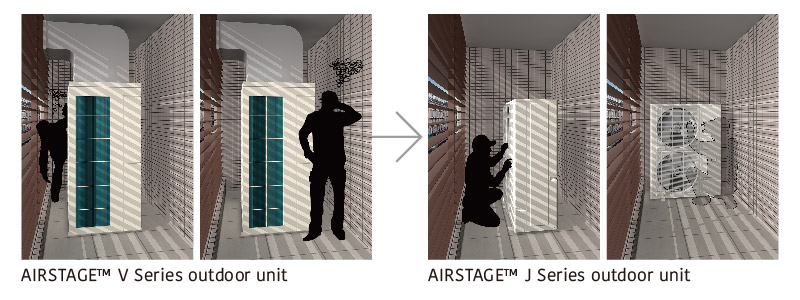

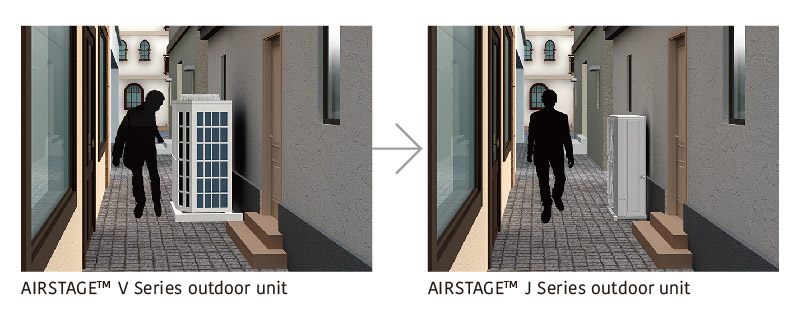

Space saving

Due to compact and thin model, direct ground installation or wall mounted installation is possible even at narrow off-street.

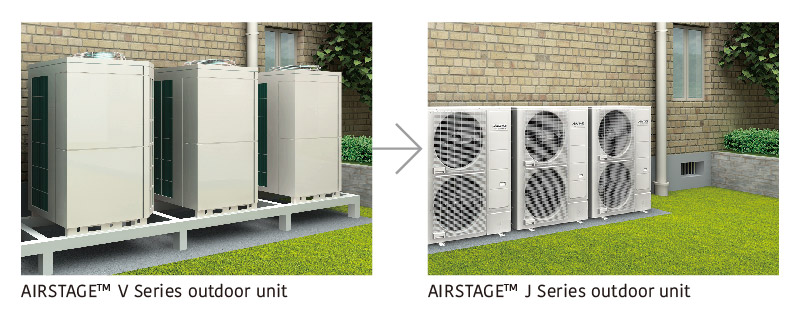

Flexible installation

This model is front air discharge type and slim & low body, so installation space is compact. Building windows are not blocked and space saving multiple units installation is possible.

Efficiency in actual operation

Top class high EER/COP(Max. Heating) is achieved for all models by a large heat exchanger, highly efficient Scroll compressor.

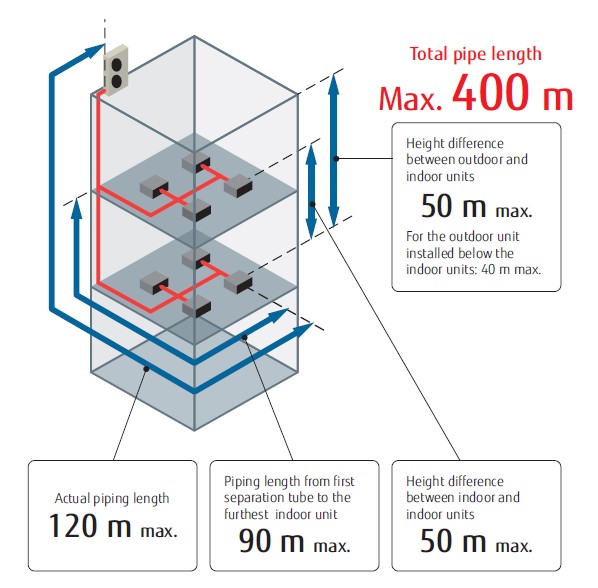

Long piping length

Our advanced refrigerant control technology allows us to achieve a total refrigerant piping length of 400 m. This opens up new possibilities in system design.

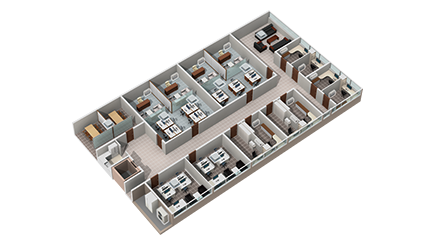

Up to 42 units* can be connected

Improvements in the design of the outdoor heat exchanger combined with our new 1.1kW indoor units mean that up to 42 indoor units can be connected.

*

18 HP model

Top Class Low Operating Sound

Low operating noise level make the units suitable for locations where sound levels are important.
