VRF Systems Service & Maintenance
UTY-ASGX Features
Extensive monitoring and analysis functions that make installation and maintenance easier
- The operation status of the system can be monitored and analyzed to detect any malfunctions.
- Data on the operation status of the system can be stored on a PC to allow for remote access.
- Up to 400 indoor units in a single VRF network system can be controlled and monitored for a large building or hotel.
- This software can be connected to any point of transmission line with a USB adapter (sold separately).
- *
- Saved data can be displayed offline. Note that the data saved by the following software applications cannot be displayed.
- • UTR-YSTB/UTR-YSTC (Service Tool)
- • UTR-YMSA (Web Monitoring Tool)

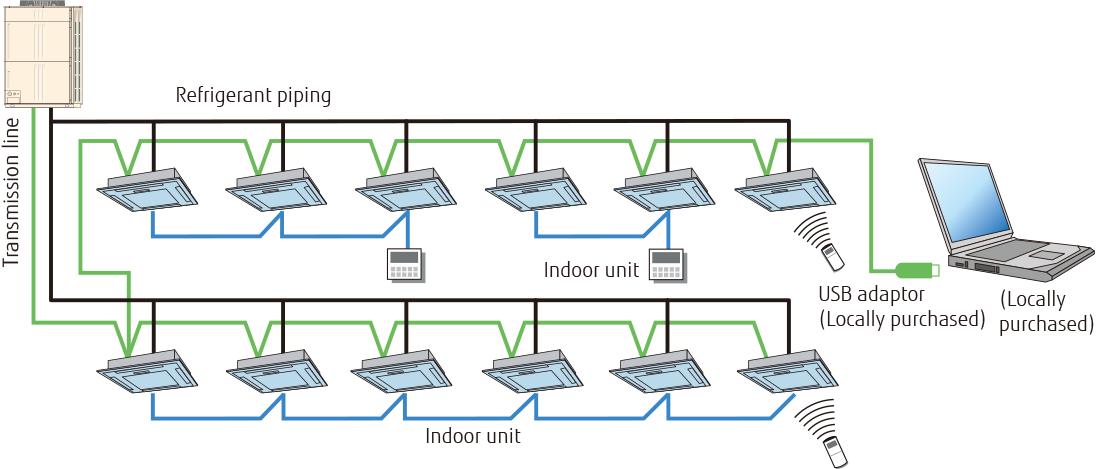

Wiring connection

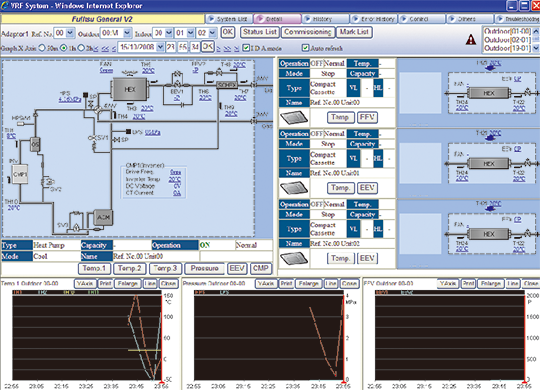

Functions
- Equipment Detail (Diagram)
- Equipment Detail (List)
- Error History
- Remote File Download
- System List
- Commissioning Tool
Computer requirements
UTY-ASGXZ1
Operating system
- Microsoft® Windows® 7 Professional (32-bit or 64-bit) SP1
- Microsoft® Windows® 8.1 Pro (32-bit or 64-bit)
- Microsoft® Windows® 10 Pro (32-bit or 64-bit)
CPU
1 GHz or higher
Memory
- 1 GB or more (for Windows Vista®, Windows® 7 [32-bit], Windows® 8.1 [32-bit], and Windows® 10 [32-bit])
- 2 GB or more (for Windows® 7 [64-bit], Windows® 8.1 [64-bit], and Windows® 10 [64-bit])
HDD
40 GB or more of free space
Screen resolution
1366 x 768 pixels or higher
Interface
- 2 USB ports*
- *
- 1 USB port required for software protection key connection
- 1 USB port required for Echelon® U10 USB Network Interface
Software
Internet Explorer® 11 or Microsoft Edge, Adobe® Reader® 9.0 or later
Packing list
- White-USB-key (software protection key) × 1
- Software protection key to be connected to a USB port on a Service Tool-installed PC. This software runs on a PC with WibuKey or White-USB-key.
UTY-AMGX Features
Software features
- Troubleshooting is performed by monitoring each air conditioning unit remotely during a periodical system check.
- An error notification is automatically transmitted to several locations via the Internet*1.
- Requires either a dedicated Internet connection or public telephone line to operate.
- The occurrence of an error can be confirmed through an error alert and equipment status information obtained from a remote location.
- Monitoring data can be downloaded in a remote location. This data can be accessed and displayed offline.
- The monitoring computer is not required to have any special software installed, but to have a web browser.
- *1:
- Internet e-mail access required.

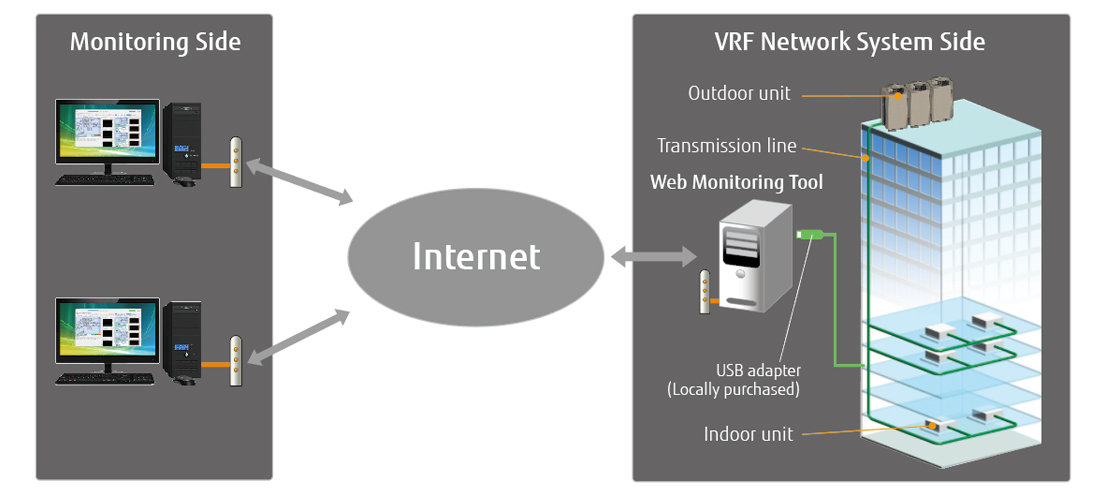

Overview of the Web Monitoring System

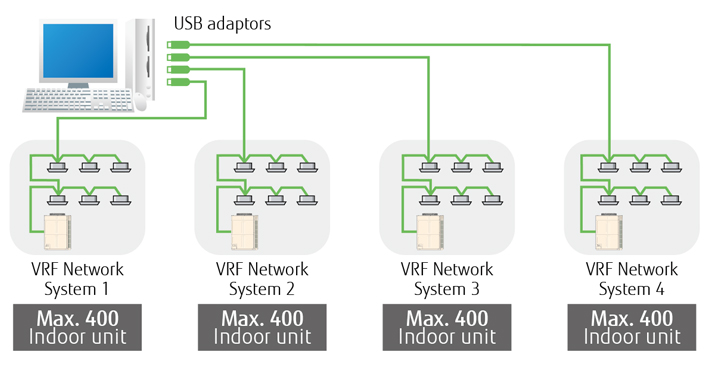

Supporting up to 4 VRF network systems
Up to 4 USB adapters can be connected to a PC, enabling the monitoring of up to 1,600 indoor units. Suitable for use in a large-scale building or a hotel.
Computer requirements
UTY-AMGXZ1
Operating system
- Microsoft® Windows® 7 Professional (32-bit or 64-bit) SP1
- Microsoft® Windows® 8.1 Pro (32-bit or 64-bit)
- Microsoft® Windows® 10 Pro (32-bit or 64-bit)
CPU
1 GHz or higher
Memory
- 1 GB or more (for Windows Vista®, Windows® 7 [32-bit], Windows® 8.1 [32-bit], and Windows® 10 [32-bit])
- 2 GB or more (for Windows® 7 [64-bit], Windows® 8.1 [64-bit], and Windows® 10 [64-bit])
HDD
40 GB or more of free space
Screen resolution
1366 x 768 pixels or higher
Interface
- USB ports (one for an Echelon® U10 USB Network Interface and up to 4 ports for software protection keys)
- Interface for remote connection: Internet using LAN or an Ethernet port
Software
Internet Explorer® 11 or Microsoft Edge, Adobe® Reader® 9.0 or later
Packing list
- White-USB-key (software protection key) × 1
- Software protection key to be connected to a USB port on a Service Tool-installed PC. This software runs on a PC with WibuKey or White-USB-key.
