Heat Recovery Modular Type V-IV Series AJH180LALDHH

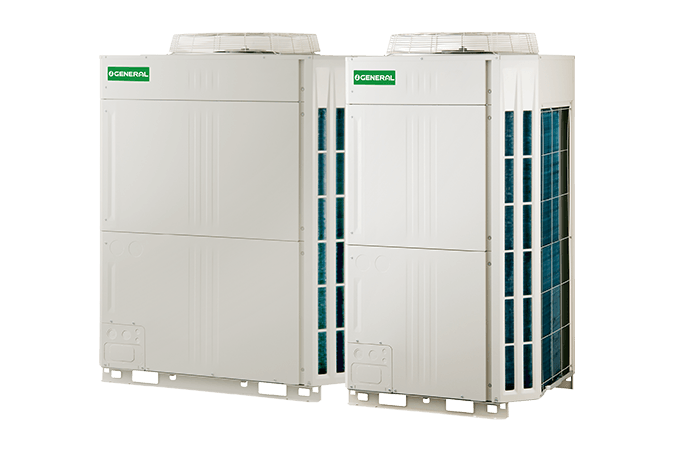

Outdoor unit

Outdoor Unit :
AJH108LALDH
Outdoor Unit :
AJH072LALDH
Download :
Catalogues

Features

  • New intelligent refrigerant control
  • Efficiency in actual operating conditions
  • The energy-saving technology that boosted operation efficiency


Specifications

Rated Capacity Range 20 HP
Max. Number of Connectable Indoor Units*1 2 - 43
Connectable Capacity of Indoor Units 28.0 - 83.8 kW
Scroll
Power Source Phase 3 phase
Voltage 400 V
Frequency 50 Hz
Capacity Cooling 55.9 kW
Heating 55.9 kW
Input Power Cooling 15.49 kW
Heating 13.18 kW
EER Cooling 3.61 W/W
COP Heating 4.24 W/W
Airflow Rate 13000 + 11100 m³/h
Sound Pressure Level*2 Cooling 61 dB(A)
Heating 63 dB(A)
Max. External Static Pressure 82 Pa
Compressor Motor Output 11 x 1 + 7.5 x 1 kW
Heat Exchanger Fin Blue fin
Net Dimensions
Height X Width X Depth
1690 x 1240 x 765 mm
1690 x 930 x 765 mm
Net Weight 275 kg
252 kg
Refrigerant Type R410A
Global Warming Potential 2088
Charge 11.8 kg (24.6 CO2eq–T)
11.7 kg (24.4 CO2eq–T)
Connection Pipe Diameter Liquid φ15.88 mm
Gas φ28.58 mm
Max. Height Difference
(Outdoor Unit: Upper/Lower)
50 / 40 m
Operation Range Cooling -5 to 46 °CDB
Heating -20 to 21 °CDB
Scroll
Note:
Specifications are based on the following conditions.
Cooling:
Indoor temperature of 27°CDB / 19°CWB, and outdoor temperature of 35°CDB / 24°CWB.
Heating:
Indoor temperature of 20°CDB / (15°CWB), and outdoor temperature of 7°CDB / 6°CWB.
Pipe length:
7.5 m; Height difference between outdoor unit and indoor unit : 0 m.When cooling operation will be conducted at outdoor air temperature below -5°C, the outdoor unit must be installed in a position that is higher than or equal to those of indoor units.

Dimensions

Outdoor Unit : AJH108LALDH / AJH072LALDH

Outdoor unit
