DX Kit for Air Handling Applications UTY-VDGX / UTP-VX60A

UTP-VX30-90AT [EEV unit] and UTY-VDGX [Control unit]

Control Unit :
UTY-VDGX
EEV Unit :
UTP-VX60A
Download :
Catalogues

Features

  • Multiple temperature sensors optimally control an air handling unit and a fan coil unit.
  • Supports a wide range of capacity classes
  • A variety of control options that meet application requirements

Specifications

Connectable Capacity Class 10.0 kW 12.5 kW 14.0 kW
Capacity Cooling 10.0 kW 12.5 kW 14.0 kW
Heating 11.2 kW 14.0 kW 16.0 kW
Scroll
Control Unit UTY-VDGX
Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Net Dimensions Height 400 mm
Width 400 mm
Depth 120 mm
Scroll
EEV Unit UTP-VX60A
Connection Pipe Diameter (Liquid) Ø12.7 mm
Net Dimensions Height 160 mm
Width 220 mm
Depth 90 mm
Scroll
Note:
Specifications are subject to the following conditions:
Cooling:
Indoor temperature of 27°C DB/19°C WB; outdoor temperature of 35°C DB/24°C WB
Heating:
Indoor temperature of 20°C DB/(15°C WB); outdoor temperature of 7°C DB/6°C WB
Pipe length:
7.5 m
Voltage:
230 V

Dimensions

Control Unit : UTY-VDGX

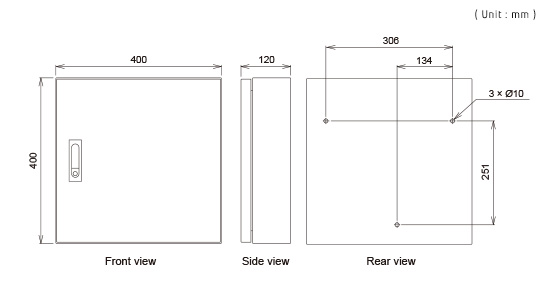

Control Unit Dimensions: 400 × 400 × 120 mm

EEV Unit : UTP-VX60A

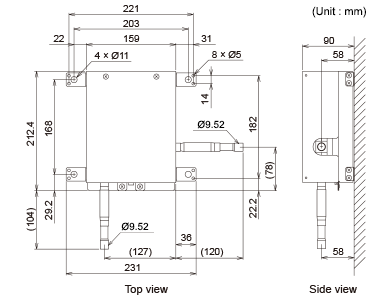

EEV Unit Dimensions: 160 × 220 × 90 mm
