R32 Capacity Range 45-54 Type ARXG54KHTB

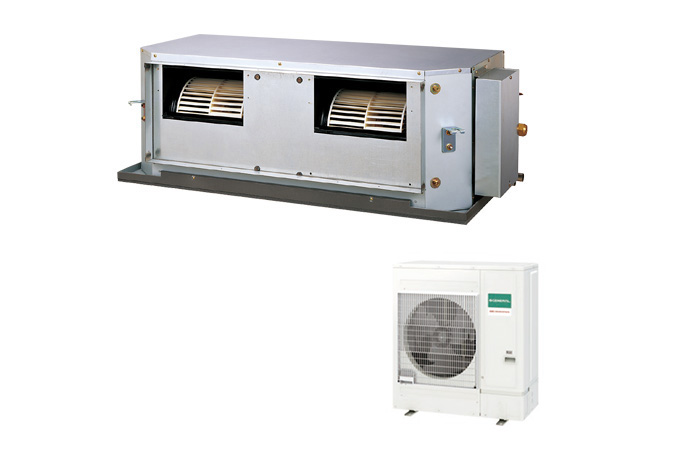

Indoor unit, remote controller, outdoor unit

All DC
Indoor Unit :
ARXG54KHTB
Outdoor Unit :
AOHG54KHTB
Download :
Catalogues

Features

  • Easy installation (compact and lightweight)
  • Design that produces high static pressure
  • Low noise mode
  • Low ambient operation

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Weekly & Temperature setback timer: Weekly & Temperature setback timer can set the temperature for 2-time spans and for each day of the week. Filter sign: Indicates the filter cleaning period by blinking. Blue fin

Capacity

Cooling   13.4 kW
Heating   15.5 kW


Specifications

Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 13.4 (5.0 - 14.5) kW
Heating 15.5 (5.5 - 18.0) kW
Input Power Cooling 4.770 kW
Heating 4.180 kW
EER Cooling 2.81 W/W
COP Heating 3.71 W/W
Max. Operating Current Cooling 28.5 A
Heating 28.5 A
Moisture Removal 2.0 l/h
Sound Pressure Level*2 Indoor (Cooling) High 47 dB(A)
Middle 43 dB(A)
Low 40 dB(A)
Indoor (Heating) High 47 dB(A)
Middle 43 dB(A)
Low 40 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 57 dB(A)
Outdoor (Heating) High 59 dB(A)
Sound Power Level Indoor (Cooling) High 75 dB(A)
Indoor (Heating) High 74 dB(A)
Outdoor (Cooling) High 73 dB(A)
Outdoor (Heating) High 73 dB(A)
Airflow Rate Indoor (Cooling) High 3350 m³/h
Outdoor (Cooling) High 4450 m³/h
Static Pressure Range (standard) 100 - 250 (100) Pa
Net Dimensions
Indoor
Height 400 mm
Width 1050 mm
Depth 500 mm
Net Dimensions
Outdoor
Height 998 mm
Width 940 mm
Depth 320 mm
Net Weight Indoor 46.0 kg
Outdoor 67.0 kg
Connection Pipe Diameter Liquid φ9.52 mm
Gas φ15.88 mm
Max. Pipe Length (Pre Charge) 50 (30.0) m
Max. Height Difference 30 m
Operation Range Cooling -15 to 46 °C DB
Heating -15 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 2700 g (1.823 CO2eq–T)
Scroll

Dimensions

Indoor Unit : ARXG54KHTB

Indoor unit
