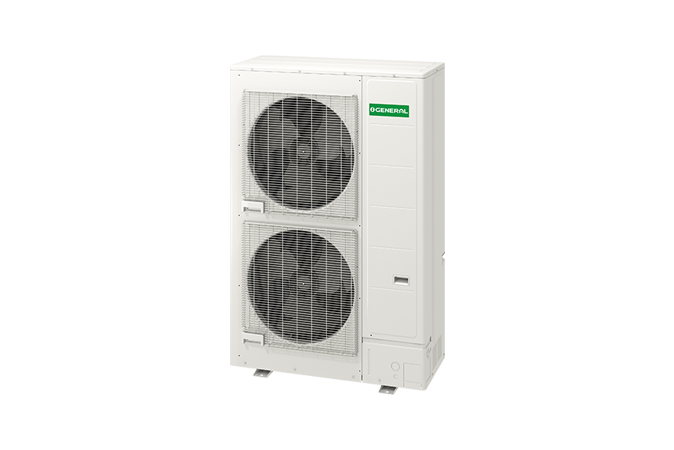

Heat Pump for Small Capacity Type J-IIIL Series AJH144LELAH
Features
- Compact design
- Advanced technologies for high efficiency
- Long piping length
- Top class indoor unit connection
- High static pressure
- Best-in-class low-noise operation
Capacity
45.0 kW
45.0 kW
Specifications
| Rated Capacity Range | 16 |
|---|---|
| Max. Number of Connectable Indoor Units*1 | 1 - 40 |
Scroll
| Power Source | Phase | 3 phase |
|---|---|---|
| Voltage | ~400 V | |
| Frequency | 50 Hz | |
| Capacity | Cooling | 45.0 kW |
| Heating | 45.0 kW | |
| Input Power | Cooling | 14.96 kW |
| Heating | 11.81 kW | |
| EER | Cooling | 3.01 W/W |
| COP | Heating | 3. 81 W/W |
| Airflow Rate | 14,000 m³/h | |
| Sound Pressure Level*2 | Cooling | 64 dB(A) |
| Heating | 65 dB(A) | |
| Net Dimensions | Height | 1,428 mm |
| Width | 1,080 mm | |
| Depth | 480 mm | |
| Net Weight | 213 kg | |
| Refrigerant | Type | R410A |
| Global Warming Potential | 2,088 | |
| Charge | 11.0 (22.9) kg | |
| Connection Pipe Diameter | Liquid | 12.70 mm |
| Gas | 28.58 mm | |
| Total Pipe Length | 400 m | |
| Max. Height Difference |
50 m
40 m |
|
| Operation Range | Cooling | -5 to 46 °CDB |
| Heating | -20 to 21 °CDB | |
Scroll
- Note:
- Specifications are subject to the following conditions:
- Cooling:
- Indoor temperature of 27°C DB/19°C WB; outdoor temperature of 35°C DB/24°C WB
- Heating:
- Indoor temperature of 20°C DB/(15°C WB); outdoor temperature of 7°C DB/6°C WB
- *
- The cooling operation range of -15 to 46°C is allowed only when all of the indoor units connected to the system are higher than capacity of 5.6kW.
- Pipe length:
- 7.5 m Height difference between outdoor unit and indoor unit: 0 m

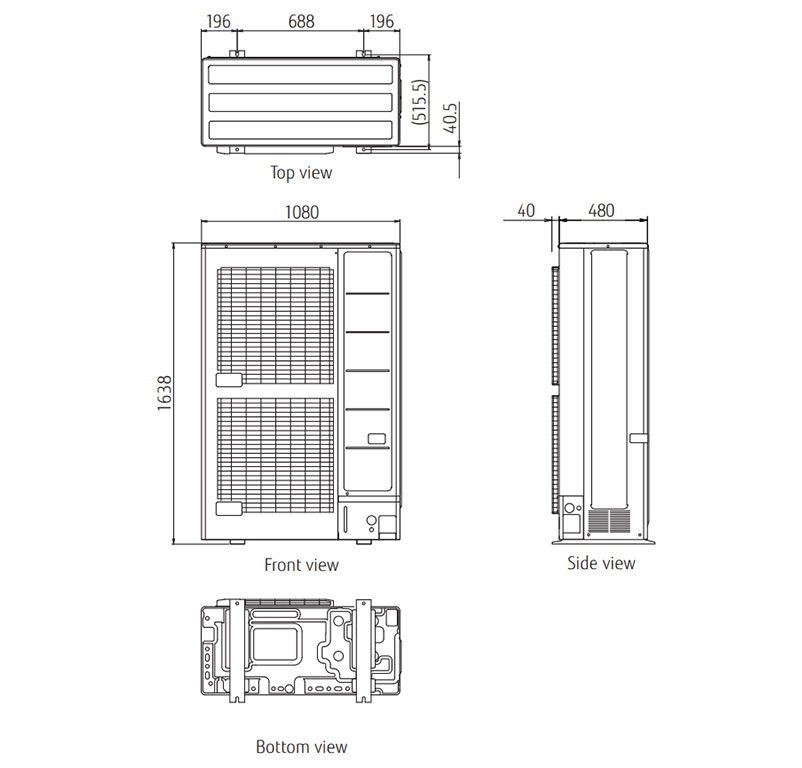

Dimensions
Outdoor Unit : AJH144LELAH
