Compact remote controller with basic functionality

• Up to 16 indoor units can be controlled with this Simple Remote Controller.
• The ease of operation makes it an ideal choice for use in hotels or offices.
• 3-wire type

Easy operation

• Enables basic control of an indoor unit, such as on/off, fan speed, and room temperature setting.
• A large On/Off button is located in the middle for quick access.
• Works with other individual control units.
• When something goes wrong, an error indicator will appear, and diagnostics can be performed with the remote controller.

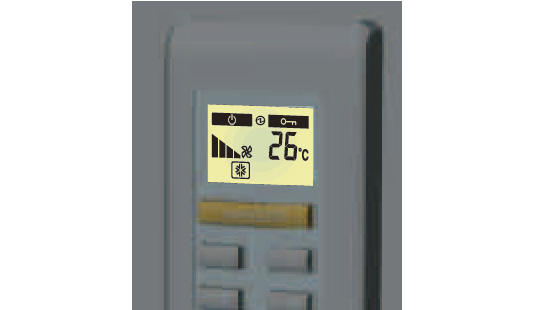

Backlight

• The backlit screen makes it easy to operate in the dark.
• The screen remains backlit for 10 seconds after a control button is pressed and for 5 seconds after the air conditioner is turned off.

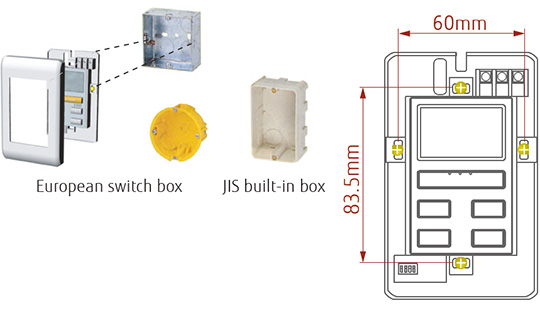

Simple installation

Can be mounted to a standard European switch box (Installation dimension: 60 mm) or to a JIS built-in box (Installation dimension: 83.5mm).

Functions

• On/Off
• Fan speed
• Operation mode
• Room temperature setting

12 V DC supplied by an indoor unit
