Central Remote Controller UTY-DCGG
- Max. number of controllable systems :
- 100 indoor units
- Max. number of controllable groups :
- 16 groups
- Download :
- Catalogues
Features
For small and medium-size buildings and commercial spaces
- Individual control and monitoring of up to 100 indoor units
- 5-inch, easy-to-read TFT color LCD screen
- Visually intuitive operation
- External input and output contact
- Detachable power supply unit
- Supports 7 languages: Chinese, English, French, German, Polish, Russian, and Spanish.
System overview
- Controls up to 16 groups of indoor units.
- Interlocking with external devices

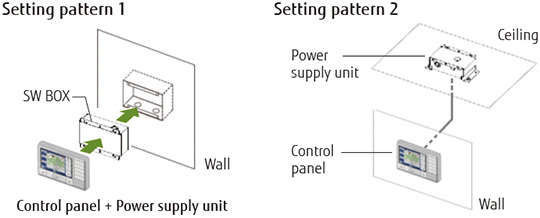

Easy installation
- The control panel and the power supply unit can be installed separately.
- For greater installation flexibility, the control panel can be built into the wall or mounted to the wall.
Functions
- Wide-ranging control of indoor units
- Weekly timer
- Automatic clock adjustment
- Error history
Specifications
Model Name | UTY-DCGG | ||
---|---|---|---|
Control Panel | Power Supply Unit | ||
Power Supply | 5 V DC | ||
Power Supply | Phase | Single phase | |
Voltage | 100 ~ 240 V | ||
Frequency | 50-60 Hz | ||
Net Dimensions | Height | 120 mm | 99 mm |
Width | 162 mm | 135 mm | |
Depth | 25.7 mm | 39.2 mm | |
Net Weight | 308 g | 355 g | |
Packing list | Control panel, power supply unit, connecting cable | ||
Packing list | Control panel, power supply unit, connecting cable |
