Network Converter for Group Remote Controller UTY-VGGXZ1

Adapters & Converters

Max. number of connectable converters :
16 units per VRF network
Max. number of controllable remote controllers :
4 Group Remote Controllers
Download :
Catalogues

Features

  • This Network Converter is required when connecting a Group Remote Controller to a VRF network system.

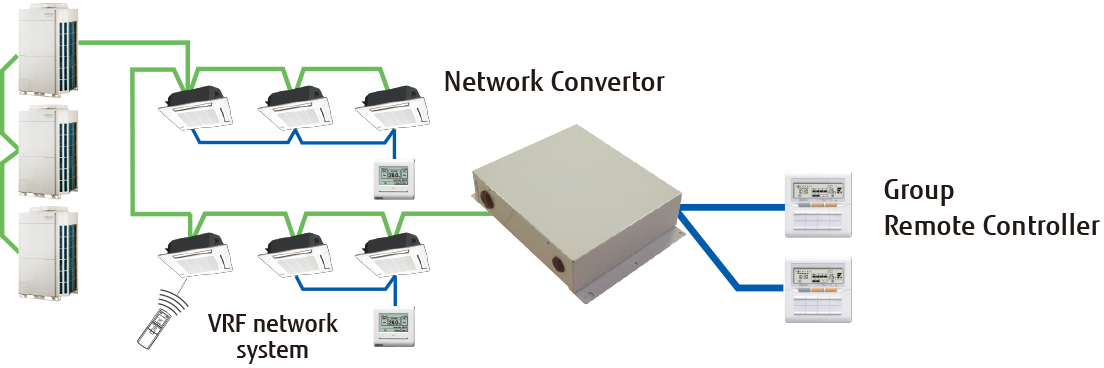

Installation example

Four Group Remote Controllers can be connected to a single Network Converter.

Two refrigerant circuits can be handled by a single Network Converter.

Up to 16 Network Converters and Central Remote Controller adapters can be connected in a single VRF network system.

Specifications

Model Name UTY-VGGXZ1
Power Supply Phase Single phase
Voltage 208 ~ 240 V
Frequency 50/60 Hz
Net Dimensions Height 67 mm
Width 288 mm
Depth 211 mm
Net Weight 1,500 g
Power Consumption 6.5 W
