Compact cassette AUXG22KVLA

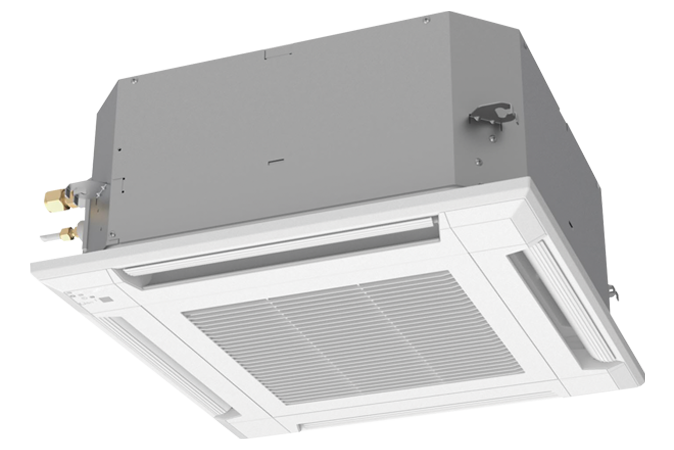

![Indoor Unit Indoor Unit](/shared/eu/img-f000-multi-auxg-07-22-kvla-01.png)
- Indoor Unit :
- AUXG22KVLA
Specifications
kW Class | 6.0 kW | |
---|---|---|
Power Source | Phase | Single phase |
Voltage | ~ 230 V | |
Frequency | 50 Hz | |
Sound Pressure Level*2 (High/Middle/Low/Quiet) |
Cooling | 44 / 42 / 36 / 30 dB(A) |
Heating | 45 / 43 / 40 / 33 dB(A) | |
Sound Power Level (High) |
Cooling | 56 dB(A) |
Heating | 57 dB(A) | |
Airflow Rate (High/Middle/Low/Quiet) |
Cooling | 830 / 740 / 600 / 450 m³/h |
Heating | 860 / 760 / 700 / 530 m³/h | |
Net Dimensions | Height | 245 mm |
Width | 570 mm | |
Depth | 570 mm | |
Net Weight | 16 kg | |
35 lbs | ||
Connection Pipe Diameter | Liquid | 6.35 mm |
Gas | 12.70 mm | |
Cassette Grille | UTG-UFYF-W |
Scroll
Optional Parts
- Wired Remote Controller
- UTY-RVNGM
- Wired Remote Controller
- UTY-RNNGM
- Simple Remote Controller
- UTY-RSNGM
- Central Remote Controller
- UTY-DMMGM1
- Fresh Air Intake Kit
- UTZ-VXAA
- Air Outlet Shutter Plate
- UTR-YDZB
- Insulation Kit for High Humidity
- UTZ-KXGC
- Wireless LAN Adapter
- FJ-RC-WIFI-1
- KNX® Interface
- FJ-RC-KNX-1i
- Modbus Interface
- FJ-RC-MBS-1
- external connect kits
- UTY-XWZX
- External Control Set
- UTD-ECS5A
