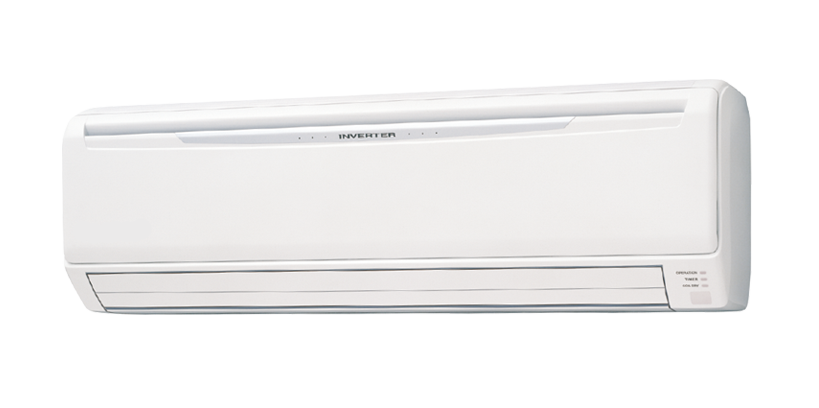

VRF Systems Indoor Unit Wall Mounted

Download :
Catalog

Model

220-240V Single-Phase
ASHA18GATH
ASHA24GATH
ASHA30GATH

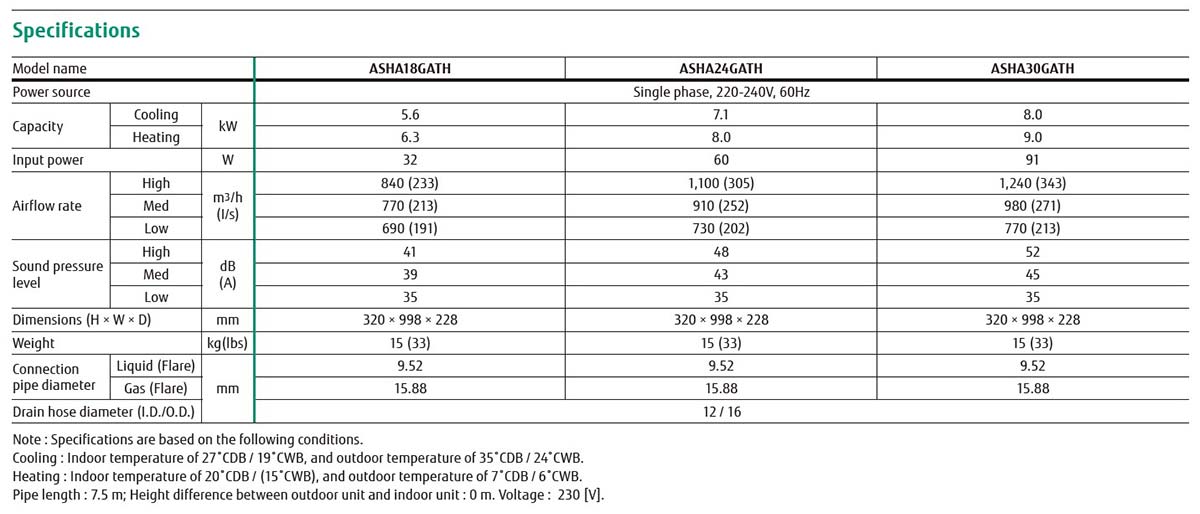

Specifications

Dimensions

Feature

More comfortable airflow by adopting power diffuser

"Vertical airflow" provides powerful floor level heating.

“Horizontal airflow” does not blow cool air directly at the occupants in the room

Air conditioner filter features

High quality air conditioning by incorporation of high performance filter.

Ion Deodorization Filter

The filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by the ultra-fine-particle ceramic.

Apple-catechin Filter

Apple-catechin filter uses static electricity to clean fine particles and dust in the air.

Double auto swing

A combination of up/down and right/left directional swing allows three-dimensional air direction control.

5 steps selectable

4 steps selectable

Compact & Slim design

By using DC fan motor, compact design is realized.

Easy maintenance

Simplification of drain pan cleaning improves maintenance-ability.
