FAQ: Wireless Control How to initialize a wireless LAN adapter

  • 0121

Answer

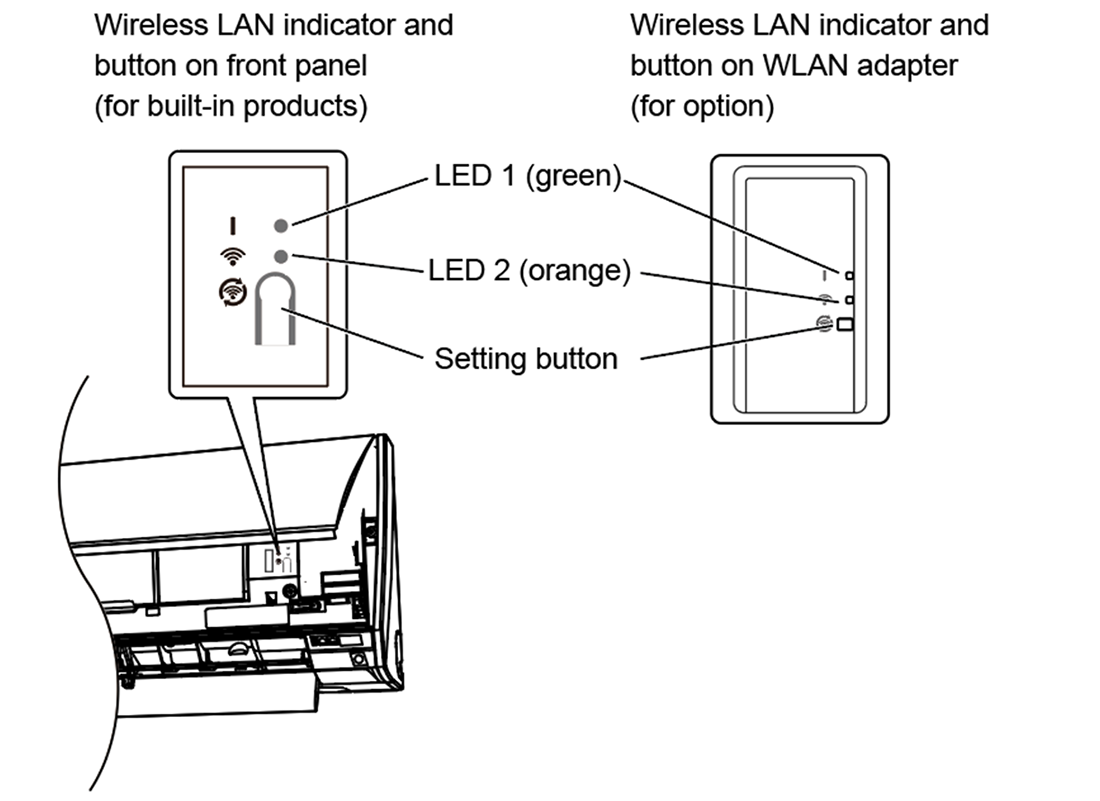

External and built-in types

1. Press and hold the Setting button for 10 seconds.

2. When initialization completes, both LED 1 and LED 2 will flash 3 times simultaneously (flashing on and off at 0.5-second intervals).

Then the LED 1 lamp will flash (on for 2 sec. and off for 0.5 sec.).

After 60 seconds, both LED lamps will return to their original lighting patterns (LED 1: on; LED 2: on for 2 sec. and off for 2 sec.).

USB types

For Remote Controller type 1

  1. Press and hold the SEND or OFF (TIMER) button on the remote controller for more than 5 seconds.
  2. "Ln" and "1" will appear on the remote controller's screen.
  3. Select "2" using the TEMP button on the remote controller.
  4. Press the O/I button on the remote controller.
  5. "1n" will appear on the remote controller's screen.
  6. Press the O/I button on the remote controller. When the adapter initialization starts, the "WLAN" indicator lamp begins to blink. When initialization completes, the "WLAN" indicator goes off.

For Remote Controller type 2

  1. Press and hold the ON (Timer) button on the remote controller for more than 5 seconds.
  2. "L2" will appear on the remote controller's screen.
  3. Press the START/STOP button on the remote controller.
  4. "1n" will appear on the remote controller's screen.
  5. Press the START/STOP button again. When the adapter initialization starts, the "WLAN" indicator lamp begins to blink. When initialization completes, the "WLAN" indicator goes off.

For Remote Controller type 3

  1. Press the WLAN button on the remote controller 3 times.
  2. "L3" will appear on the remote controller's screen.
  3. Press and hold the O/I button on the remote controller for more than 5 seconds. When the adapter initialization starts, the "WLAN" indicator lamp begins to blink. When initialization completes, the "WLAN" indicator goes off.

For Remote Controller type 4

  1. Press the WLAN button on the remote controller 3 times.
  2. "L3" will appear on the remote controller's screen.
  3. Press the O/I button on the remote controller .
  4. "1n" will appear on the remote controller's screen.
  5. Press and hold the O/I button on the remote controller for more than 5 seconds. When the adapter initialization starts, the "WLAN" indicator lamp begins to blink. When initialization completes, the "WLAN" indicator goes off.

For Remote Controller type 5

  1. Press and hold the TIMER button on the remote controller for more than 5 seconds.
  2. "Ln" and "1" will appear on the remote controller's screen.
  3. Select "2" using the TEMP button on the remote controller.
  4. Press the START/STOP button on the remote controller.
  5. "1n" will appear on the remote controller's screen.
  6. Press the START/STOP button on the remote controller. When the adapter initialization starts, the "WLAN" indicator lamp begins to blink. When initialization completes, the "WLAN" indicator goes off.
